Product Details:
|
| Measurement Range: | 0- 100% | Working Life: | 3 Years |
|---|---|---|---|
| Signal Output: | 8.0-12.0mV | Loading Resistance: | >10KΩ |
| Operating Temperature: | 10℃-40℃ | Working Pressure: | 700- 1250 HPa |
| Highlight: | Anesthetics Oxygen Sensor,Medical Oxygen Sensor,YJJ M-10 Oxygen Sensor |
||
Product Description:

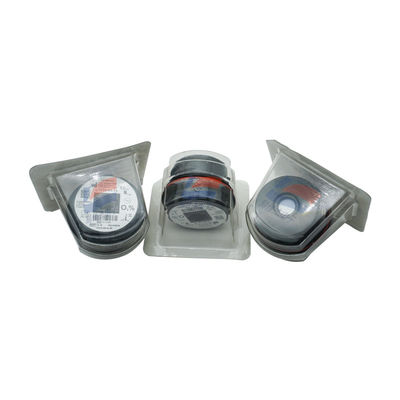

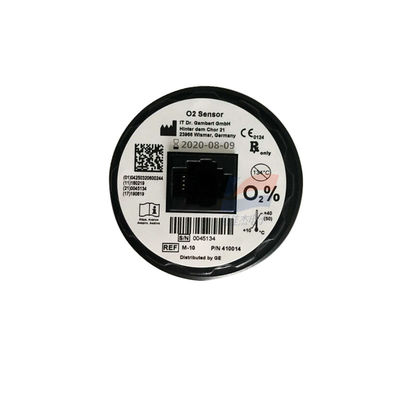

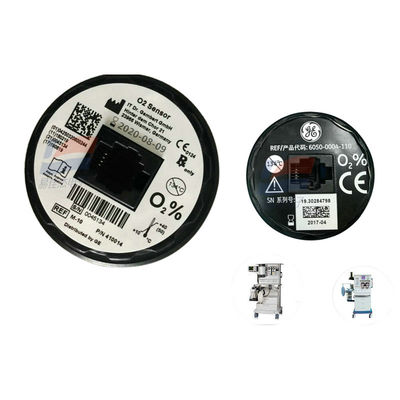

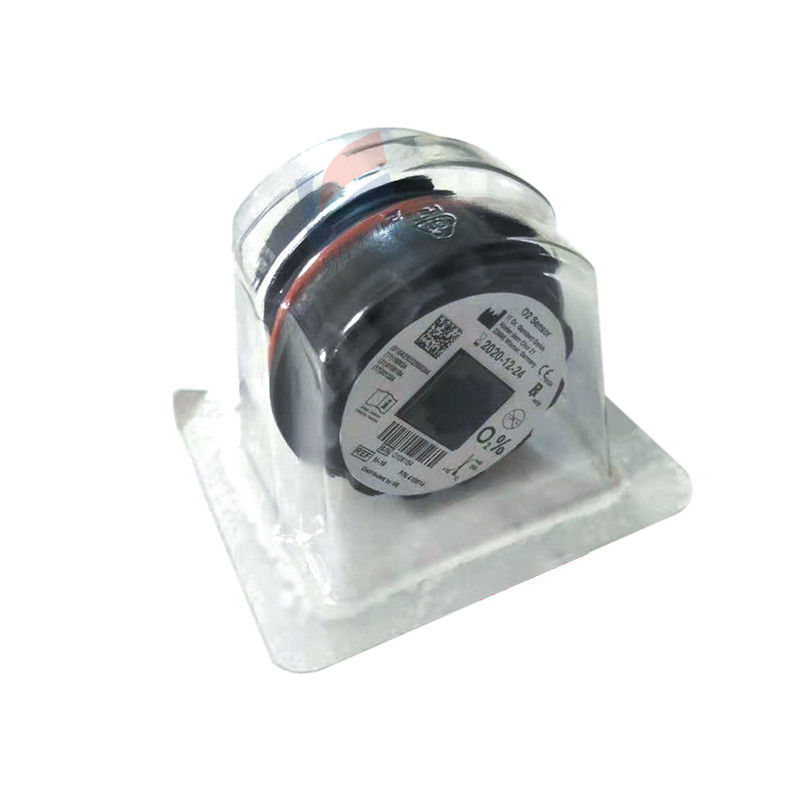

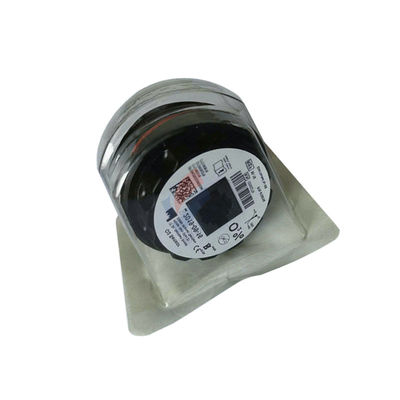

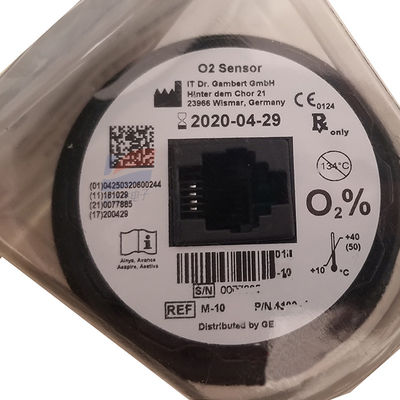

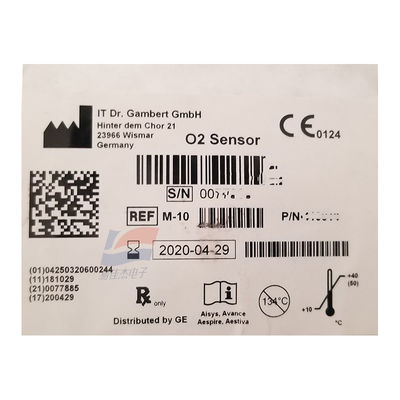

M-10 Medical Oxygen (O2) Sensor Is Used For Anesthetics
Features:
Overview of Medical Oxygen (O2) Sensors:
The medical oxygen sensors from ITG in Germany are the most stable oxygen sensors. Most of the manufacturers of ventilators and anesthesia machines in China are using ITG's oxygen sensors. Many oxygen concentration monitoring devices for ventilators and anesthesia machines are using ITG's sensors. Therefore, ITG's medical oxygen sensors are very important in the market
Product Name: Medical Oxygen (O2) Sensor O2/M-10
Measurement range: 0- 100%
Working life: 3 years
Signal output :8.0-12.0mV
Loading resistance: >10KΩ
Resolution rate: 0.1%
Operating temperature: 10℃-40℃
Working pressure: 700- 1250 hPa
Response time (T90) : < 16 seconds
Signal attenuation: < 1% per month
Humidity range: -0.03%/1%RH
Temperature compensation: Available
Connection port: 6P4C crystal connector
Specifications:
| Large zero drift (20℃to 40℃) | 1% |
| Long-term drift | <1% per month |
| Recommended load valu | >10KΩ |
| Storage life | 6 months (in container) |
