Product Details:
|
| Zero Percent.: | 100 % Oxygen | Initial Output: | 9 MV-14 MV |
|---|---|---|---|
| Electrical Interface: | 3,5 Mm Mono Phone Jack | Linearity Error: | < 3 % Relative |
| Response Time: | < 12 S To 90 % Of Final Value | Influence Of Humidity: | Influence Of Humidity |
| Highlight: | Respirator Oxygen Sensor,Medical Anesthesia System Oxygen Sensor,Electrochemical Oxygen Sensor |
||
Product Description:

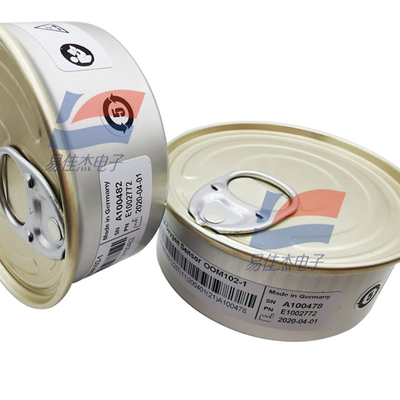

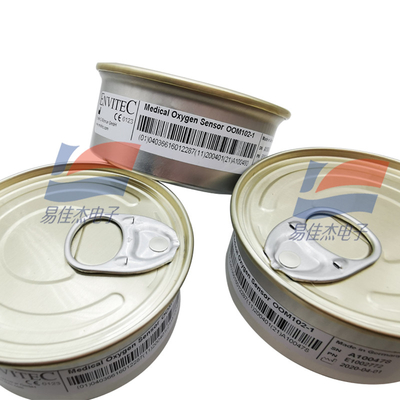

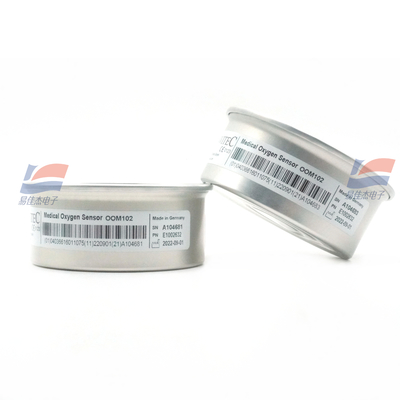

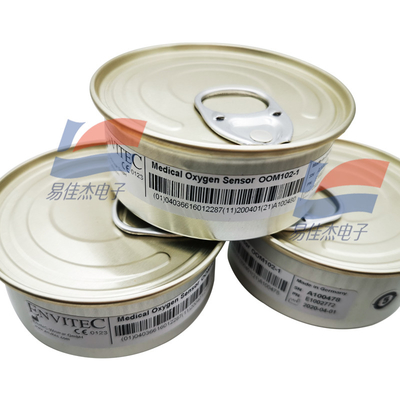

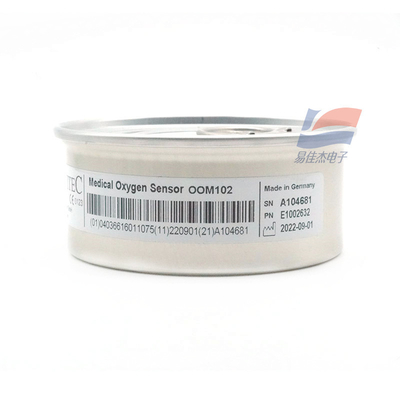

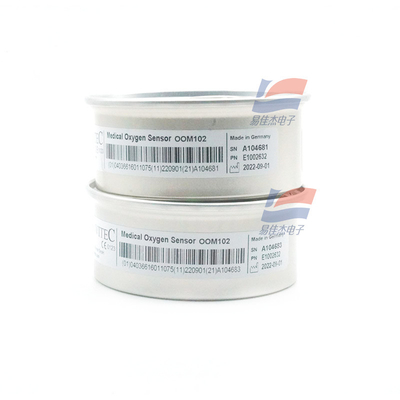

OOM102-1 OOM102 Electrochemical Oxygen Sensor Oxygen Battery Medical Anesthesia System Respirator
Features:
Product Description: O2 Sens Medical Oxygen Sensor
Main function: Monitor inhaled oxygen concentration in anesthetic respiratory equipment
Performance parameters: Electrochemical principle
Measurement range: 0- 100% oxygen concentration
Response time: < 12 seconds
Wiring port: 3 gold-plated ring leads
Operating temperature: 0℃ to 50℃
Humidity range: 0- 99% RH (resistant to high humidity)
Volume: ￠29mm×22mm
Working life: 3 years in the air
Applicable brands: Draeger drager Evita series/Savina/Oxydig/Oxycom/Babilog series I - 8000 / Cato/Cicero/Narkomed/Fabius GS/PM9030, etc., IT/M-02, MSA 655263/64, HP 15201A, Maxtec MAX-11, Sensidyne, Teledye, Pacifitech, Analytical Industries, Hamilton, VTI, Oxitron, PPG Biomedical, Ceramatec, DP Medical, Integral Process, Burde, Hudson RCI, Mercury Medical
Draeger oxygen battery, Draeger oxygen battery, Fabius oxygen battery, EVIT4 oxygen battery, EVIT4XL oxygen battery
Drager oxygen batteries, PB oxygen batteries, Siemens oxygen batteries, Bird oxygen batteries, Reismai oxygen batteries, providing all brands and models of oxygen batteries, EVITEC OOM201 / OOM202 oxygen concentration testers, oxygen batteries (oxygen sensors)
ADVANTAGES
• High accuracy and
reliability in response
• Resistant to N2O
• Enhanced signal stability and
product quality
• Short delivery times
• Technical support
• Made in Germany
• FDA cleared
Specifications:
| Working power | 0 % ... 100 % oxygen |
| Storage temperature | -20°C ... 50°C |
| Recommended storage | 5°C … 15°C |
| lifetime | >2.5 years |
