Product Details:
|
| Working Principle: | Partial Pressure Electrochemistry | Output Voltage: | 9-13 MV (in Air) |
|---|---|---|---|
| Measurement Range: | 0-100% Vol.O2 | Response Time (T90): | < 5 Seconds |
| Response Time (T99.5): | 2 < 40 Seconds | Baseline Drift: | < 20 μV |
| Highlight: | High Accuracy Partial Pressure Oxygen Sensor,Quick Response Partial Pressure Oxygen Sensor |
||

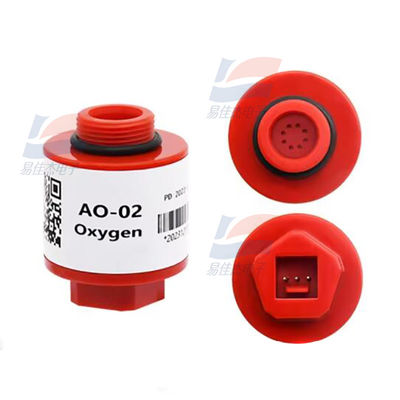

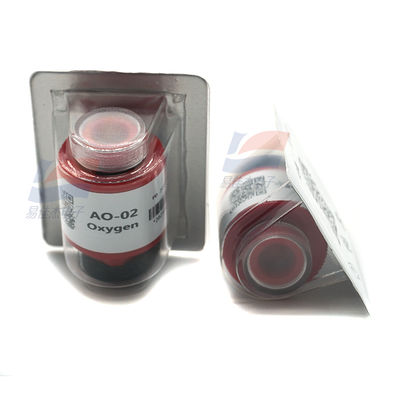

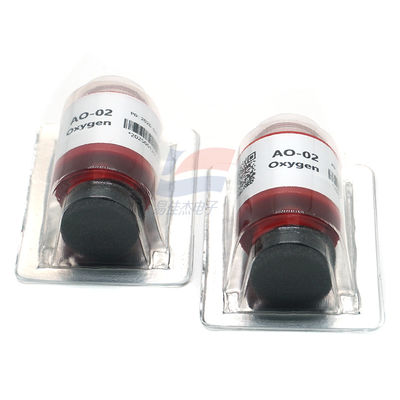

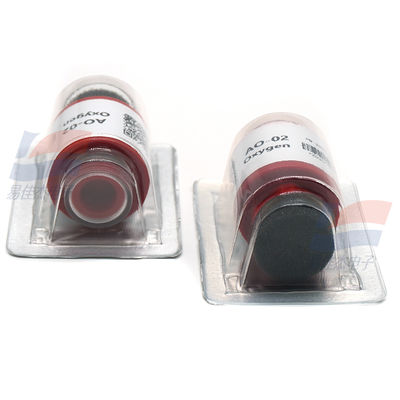

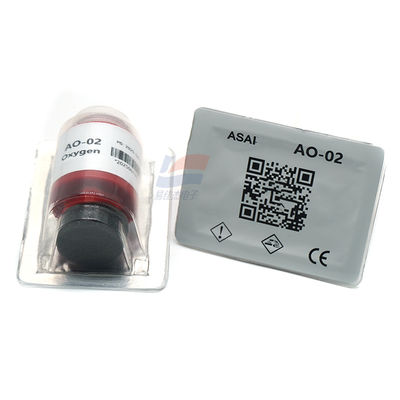

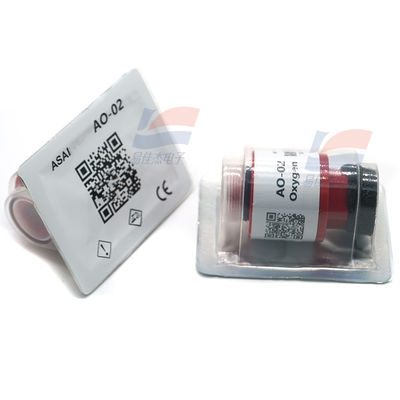

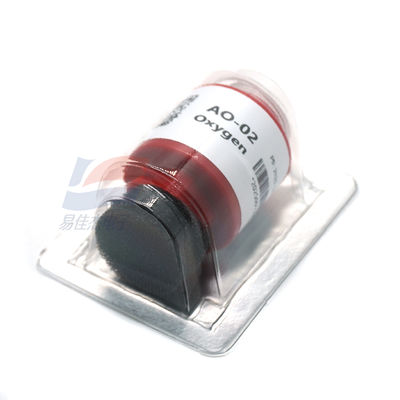

AO-02 Oxygen sensor
Product Summary:
The high-quality AO-02 oxygen sensor is a type of sensor that measures oxygen concentration based on electrochemical principles. It adopts a molded body design and features rapid response and a long service life. For the AO-02 oxygen sensor, the structure and temperature compensation process have been optimized to provide high-quality products and a more attractive cost performance.
Full-range linear output
No external power supply is required when working
It has a temperature compensation circuit
Rapid response
Accurate and reliable
Strong anti-interference ability
Product Description:
The AO-02 oxygen sensor is designed for use in various instruments related to oxygen testing, such as vehicle exhaust gas detection instruments, waste gas environmental protection detection instruments, and oxygen index testing instruments, etc. This application is limited to system monitoring only. The data provided in this document was measured at 20°C, 50% RH and 1013 mBar and is valid for 3 months from the date of sensor manufacturing. Please strictly follow the instructions for operating the oxygen analyzer and replacing the oxygen sensor.
Installation and Usage:
1. Installation requirements:
When installing the sensor, it can only be tightened by hand and ensure an airtight seal. Do not use wrenches or similar mechanical auxiliary tools, as excessive force may damage the sensor thread.
2. Storage and Use:
The AO-02 design is suitable for operation in various environments and harsh conditions, but it is still necessary to avoid exposure to high concentrations of solvent vapors during storage, installation and operation.
When using sensors with printed circuit boards (PCBS), a degreaser should be applied before installing the sensors. Do not stick it directly on or near the shell, as the solvent may cause the plastic to crack.
3. Cleaning:
In case of contamination, the sensor can be cleaned with distilled water and allowed to dry naturally. This sensor is not suitable for steam sterilization Or exposure to chemicals such as ethylene oxide or hydrogen peroxide.
| Temperature compensation | < 2% O2 equivalent (0-40 ℃) |
| Load resistance | ≥ 10 kΩ |
| Interface | Molex 3-pin connector |
| Accessory part 3 | Molex three-way housing Molex crimp terminal |
| Shell material | Red ABS |
| Weight | Approximately 40 grams |
| Orientation | Arbitrary |
| Operating temperature range | 0 - +50 ℃ |
| Working pressure range | 0.5-2.0 Bar |
| Pressure difference range | 0-500 mBar |
| Working humidity range | 0-99% RH (no condensation) |
