AO-06 Electrochemical Oxygen Sensor Response Time 15 Seconds Output Voltage 9-13 mV in Air

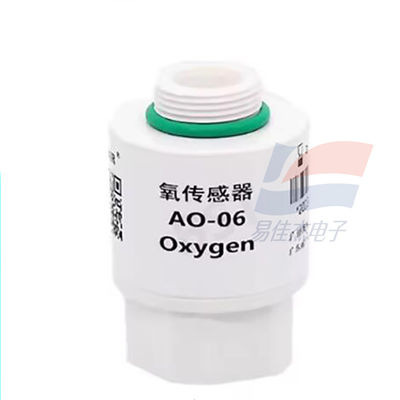

Large Image : AO-06 Electrochemical Oxygen Sensor Response Time 15 Seconds Output Voltage 9-13 mV in Air

Product Details:

Place of Origin:	CN
Model Number:	AO-06

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

AO-06 Electrochemical Oxygen Sensor Response Time 15 Seconds Output Voltage 9-13 mV in Air

Description

Working Principle:	Partial Pressure Electrochemistry	Output Voltage:	9-13 MV (in Air)
Measurement Range:	0 To 100%	Response Time (T90):	< 15 Seconds
Temperature Compensation:	< 2% O2 Equivalent (0-40 ℃)	Load Resistance:	≥10 KΩ
Highlight:	Air Electrochemical Oxygen Sensor , 9-13 mV Electrochemical Oxygen Sensor , 15 Seconds Electrochemical Oxygen Sensor

AO-06 Electrochemical Oxygen sensor

Product Brief:

The AO-06 oxygen sensor is an electrochemical sensor specifically designed for measuring oxygen concentration in medical equipment. Its interface model is 5520257-2. It adopts a molded main body design and features rapid response and long service life. It can be replaced domestically, helping customers reduce costs at the same time

It provides outstanding quality.

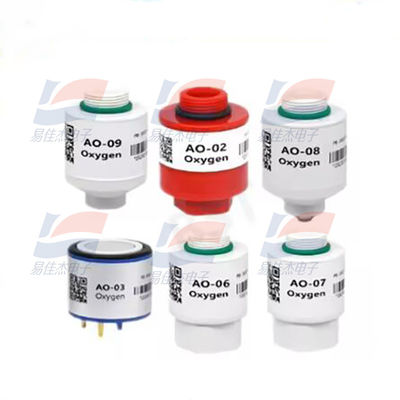

The difference between this sensor and the AO-07 oxygen sensor lies in the different pin definitions.

Full-range linear output
The operation does not require an external power supply
Temperature compensation
Quick response
Accurate and reliable
Strong anti-interference ability

Application scope:
The AO-06 oxygen sensor does not require an external power supply when in operation. It has undergone professional and accurate product calibration and temperature compensation before leaving the factory. It can be used as the sensing component of oxygen analyzers, such as oxygen generator control devices, medical ventilators, anesthesia equipment, incubators, etc.

Installation requirements:
When installing the sensor, it should be tightened by hand and ensure good air tightness. Do not use wrenches or similar mechanical auxiliary tools to prevent the sensor thread from being damaged due to excessive force.

Storage and Usage:
The AO-06 oxygen sensor should be protected from exposure to high-concentration organic solvent vapors during storage, installation and operation. When using sensors with printed circuit boards (PCBS), the PCB should be cleaned with a degreaser before installing the sensor to prevent impurities such as rosin from evaporating and condensing, which could clog the breathable membrane of the oxygen sensor. Organic solvents are prohibited on the sensor housing as they may cause the plastic to crack.

Cleaning"
If the sensor housing is contaminated, the sensor can be cleaned with distilled water and allowed to dry naturally. Steam cannot be used on the sensor Steam sterilization or prolonged exposure of the sensor to an environment containing chemicals such as ethylene oxide and hydrogen peroxide.

Temperature compensation	< 2% O2 equivalent (0-40 ℃)
Load resistance	≥10 kΩ
Interface	P/N 5520257-2
Shell material	White ABS
Weight	Approximately 40 grams
Operating temperature range	0 to 50 ℃
Working pressure range	0.5-2.0 bar
Working humidity range	0-99% RH (no condensation)
Service life	1.5× 106% O2 hours (at 20 ℃) 3 0.8× 106% O2 hours (40 ℃)
Warranty period	13 months from the date of shipment
Measurement range	0 to 100%
