Product Details:
|
| Output: | 10 To 16 MV | Zero-point Voltage: | Less Than 0.5 Mv |
|---|---|---|---|
| Resolution: | ± 0.1% | Temperature Range: | 5℃ To 45℃ |
| Response Time: | 1MΩ | Sampling Port: | M16X1 Thread |
| Highlight: | YJJ PSR 11-917-S Oxygen Sensor,Electrochemical Oxygen Sensor,Medical Anesthesia Machines Oxygen Sensor |
||
Product Description:

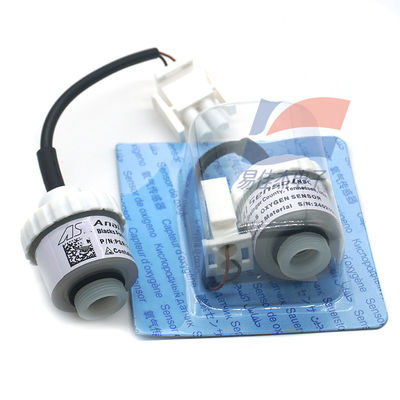

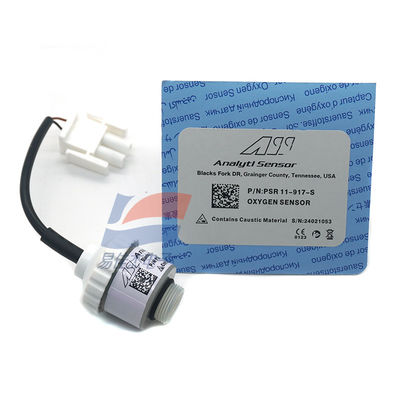

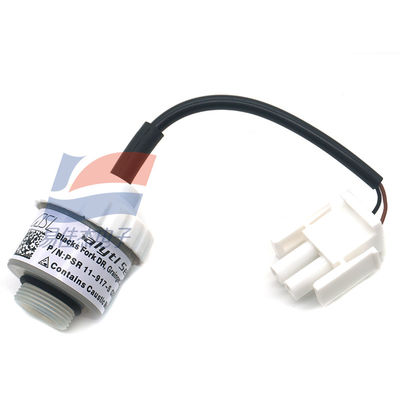

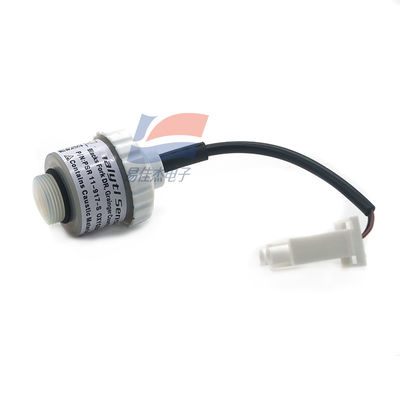

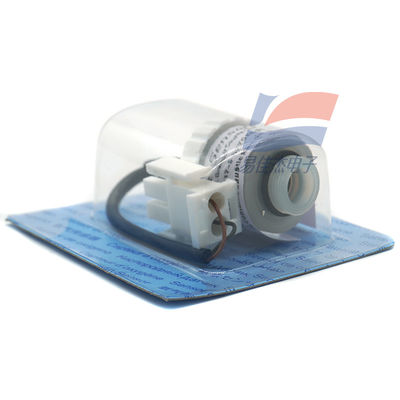

PSR 11-917-S Electrochemical Oxygen Sensor Oxygen Battery Is Used In Medical Anesthesia Machines
Features:
American AII oxygen battery PSR-11-75-KE4, American AII PSR-11-75-KE4 oxygen sensor
American AII oxygen sensor PSR-11-917-M2OEM device:
Lead 760 ventilator
Lead 840 ventilator
Conditions of the American AII oxygen sensor PSR-11-917-M2:
The specification verification pursues improvement changes in the design without further notice. American AII oxygen sensor PSR-11-917-M2
At constant temperature and pressure.
2) In air (20.9% oxygen) at 25 ° C and 1 atmosphere pressure.
3) The sensor can store up to 55 ° C intermittent, for example, operating atmospheric pressure.
5) Under normal working conditions, the sensor is necessary to be free from material and process defects within *** time, providing suitable sensor installation and operation.
Measurement range: 0- 100%
Working life: 900,000% hours, approximately 5 years in the atmosphere
Output: 10 to 16 mV
Zero-point voltage: less than 0.5 mv
Resolution :± 0.1%
Temperature range: 5℃ to 45℃
Pressure range: 0.5 to 1.5 ATM
Response time: 1MΩ
Accuracy: ±1% (at normal temperature and pressure), ±2% (throughout the full temperature range)
Storage temperature: 15℃ to 50℃
Sampling port: M16X1 thread
Storage life: 6 months (in container)
Shelf life: 18 months from the date of shipment
Features of the American AII PSR-11-75-KE4 oxygen sensor:
The American AII PSR-11-917-M2 is applicable to ventilators such as PB840, 760 Hamilton, and Tianma
Oxygen battery for the American AII PSR-11-75-KE6 SLE 2000 ventilator
American AII PSR-11-915-4 Oxygen battery Ohmeda 7900 Oxygen battery 6050-004-110 Ohmeda 7100 Oxygen battery 6050-004-110 Ohmeda Aestiva 3000
56050-004-110 is compatible with Envite (Anvite). OOM110 is compatible with the M-10 of IT companies, the oxygen battery of Omeda 7100 anesthesia machine, and the oxygen battery of Omeda 7900 anesthesia machine
American AII PSR-11-917-J oxygen battery PB7200 ventilator oxygen battery Wuxi Zhongyuan Anesthesia machine oxygen battery Tianma Anesthesia machine oxygen battery
American AII PSR-11-75-KE4 oxygen battery, Viasys Vela bird, VELA oxygen battery, VELA ventilator, oxygen sensor
American AII PSR-11-75-KE9 oxygen battery, Newport e360, Newport e500, Newport E360 ventilator, oxygen battery, Newport E500 ventilator
Specifications:
| Recommended load | ≥10Ω |
| Preheating time | <30 minutes, after replacing the sensor |
| Operating temperature | 0℃ to 40℃ |
| Pressure range | 750 to 1250 hPa |
