Product Details:
|
| Measurement Range: | 0-100% | Zero-point Voltage: | 0.5mV |
|---|---|---|---|
| Linearity: | +/-2.0% At Full Load | Stability: | Under Constant Temperature |
| Lifespan: | 5 Years | Humidity: | 5% To 95% Relative Humidity |
| Highlight: | PSR-11-75-KE7 Oxygen Battery,YJJ Oxygen Battery,NEWPORT Oxygen Battery |
||
Product Description:

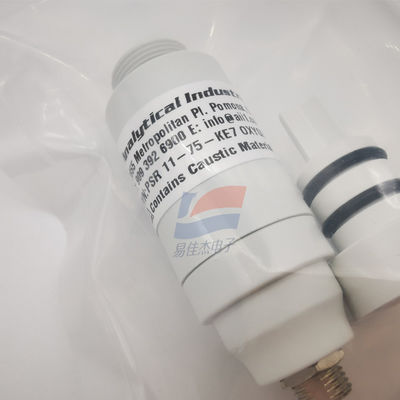

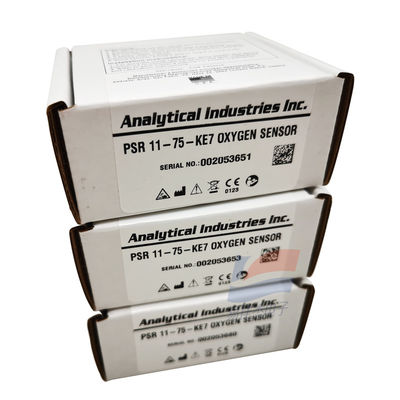

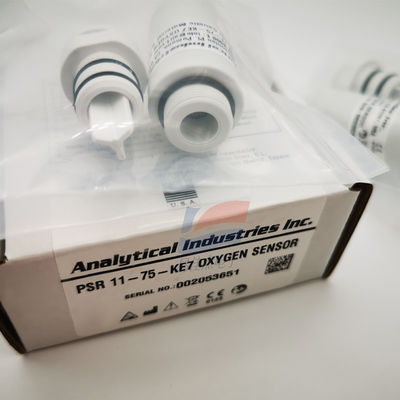

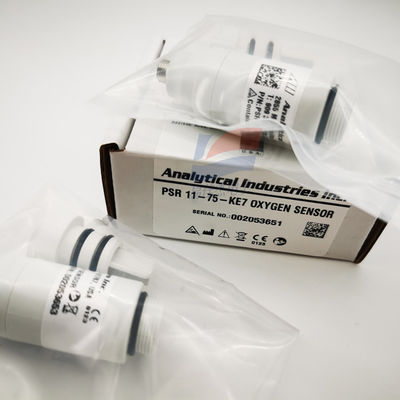

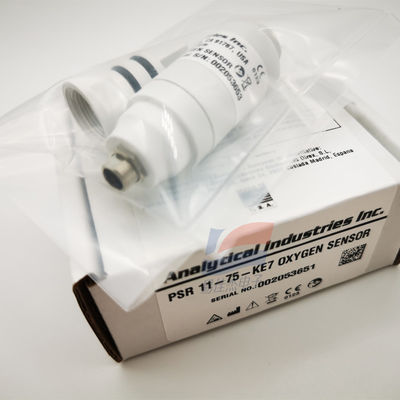

PSR-11-75-KE7 NEWPORT Oxygen Battery Newport Oxygen Sensor
Features:
NEWPORT Oxygen Battery, Newport Oxygen Battery PSR-11-75-KE7
PSR-11-75-KE9 is hereinafter referred to as KE7 oxygen battery or KE9 oxygen battery
Compatible with the MAX-250E oxygen battery, the oxygen sensor is applied to the oxygen battery of the NEWPORT E360 E500, HT70 ventilator and the Newport E360 ventilator
Output: 10-15.5mV in an environment with a temperature of 25℃ and a pressure of 1013mbar
Operating temperature: 5 to 40℃
Maximum storage temperature: -15 to 50℃
The most ideal storage temperature: 5 to 25℃
Measurement range: 0-100%
Zero-point voltage: 0.5mV
90% response time: 15 seconds at 25℃
Linearity: +/-2.0% at full load
Stability: Under constant temperature, humidity and pressure, the load does not exceed 1%
Temperature compensation: No more than 3% at 15 to 50℃
Lifespan: 5 years
Humidity: 5% to 95% relative humidity without condensation
RESMED oxygen battery, ResMED oxygen battery MOX-20, BLEASE oxygen battery MAX-250A, Stephanie oxygen battery, Stephanie oxygen battery Christina, Cordina oxygen battery Alia oxygen battery
CPAP System oxygen battery F 120 Oxygen battery Stephan CPAP oxygen Battery M-15 oxygen battery, M-04 oxygen battery, M-11 oxygen battery, iVent201 oxygen battery, original Draeger oxygen battery from Weisar, USA 6850645
Specifications:
| Recommended load | ≥10Ω |
| Preheating time | <30 minutes, after replacing the sensor |
| Operating temperature | 0℃ to 40℃ |
| Pressure range | 750 to 1250 hPa |
