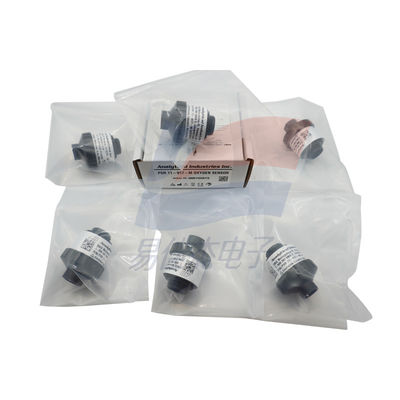

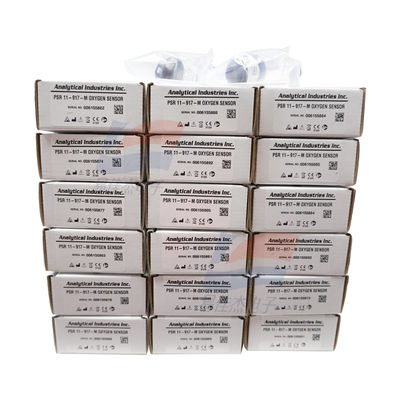

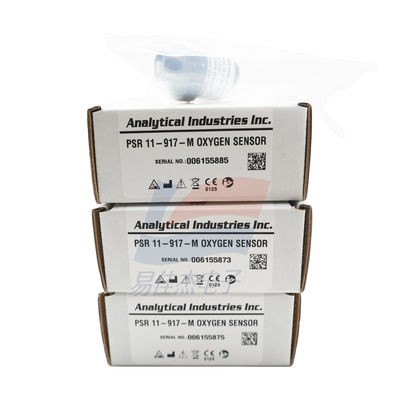

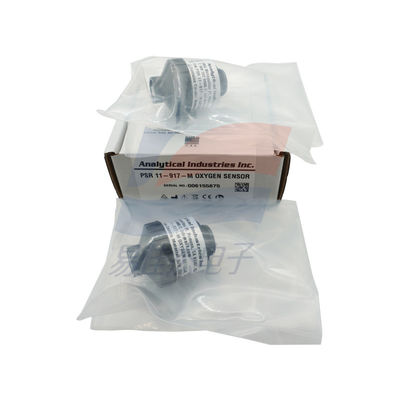

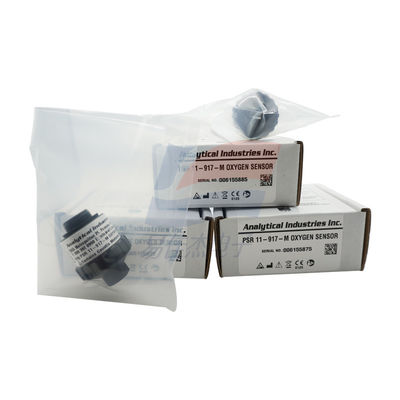

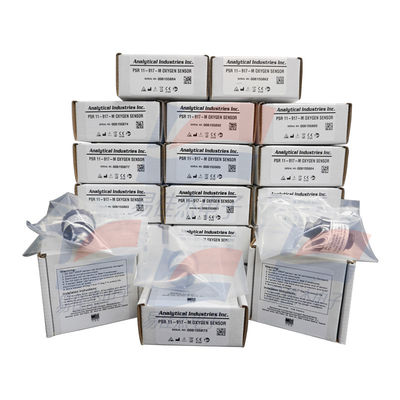

YJJ PSR-11-917-M Oxygen Sensor And Oxygen Battery Are Used In 760/840 Ventilators

Product Description:

PSR-11-917-M Oxygen Sensor And Oxygen Battery Are Used In 760/840 Ventilators

Features:

American AII PSR-11-917-M oxygen sensor PSR-11-917-M oxygen battery

American AII oxygen battery PSR-11-75-KE4, American AII PSR-11-75-KE4 oxygen sensor

American AII oxygen sensor PSR-11-917-M2OEM device:

Lead 760 ventilator

Lead 840 ventilator

Conditions of the American AII oxygen sensor PSR-11-917-M2:

The specification verification pursues improvement changes in the design without further notice. American AII oxygen sensor PSR-11-917-M2

At constant temperature and pressure.

2) In air (20.9% oxygen) at 25 ° C and 1 atmosphere pressure.

3) The sensor can store up to 55 ° C intermittent, for example, operating atmospheric pressure.

5) Under normal working conditions, the sensor is necessary to be free from material and process defects within *** time, providing suitable sensor installation and operation.

Measurement range: 0- 100%

Working life: 900,000% hours, approximately 5 years in the atmosphere

Output: 10 to 16 mV

Zero-point voltage: less than 0.5 mv

Resolution :± 0.1%

Temperature range: 5℃ to 45℃

Pressure range: 0.5 to 1.5 ATM

Response time: 1MΩ

Accuracy: ±1% (at normal temperature and pressure), ±2% (throughout the full temperature range)

Storage temperature: 15℃ to 50℃

Sampling port: M16X1 thread

Storage life: 6 months (in container)

Shelf life: 18 months from the date of shipment

Features of the American AII PSR-11-75-KE4 oxygen sensor:

The American AII PSR-11-917-M2 is applicable to ventilators such as PB840, 760 Hamilton, and Tianma

Oxygen battery for the American AII PSR-11-75-KE6 SLE 2000 ventilator

American AII PSR-11-915-4 Oxygen battery Ohmeda 7900 Oxygen battery 6050-004-110 Ohmeda 7100 Oxygen battery 6050-004-110 Ohmeda Aestiva 3000

56050-004-110 is compatible with Envite (Anvite). OOM110 is compatible with the M-10 of IT companies, the oxygen battery of Omeda 7100 anesthesia machine, and the oxygen battery of Omeda 7900 anesthesia machine

American AII PSR-11-917-J oxygen battery PB7200 ventilator oxygen battery Wuxi Zhongyuan Anesthesia machine oxygen battery Tianma Anesthesia machine oxygen battery

American AII PSR-11-75-KE4 oxygen battery, Viasys Vela bird, VELA oxygen battery, VELA ventilator, oxygen sensor

American AII PSR-11-75-KE9 oxygen battery, Newport e360, Newport e500, Newport E360 ventilator, oxygen battery, Newport E500 ventilator

Specifications:
