Product Details:
|
| Model: | MQ-4 | Sensor Type: | Semiconductor |
|---|---|---|---|
| Standard Encapsulation: | Bakelite, Metal Cap | Target Gas: | Methane |
| Detection Range: | 300～10000ppm(CH4) | Loop Voltage: | 5.0V±0.1V DC |
| Highlight: | 10000ppm Flammable Gas Sensor,Highly Sensitive Semiconductor Flammable Gas Sensor,MQ-4 Flammable Gas Sensor |
||

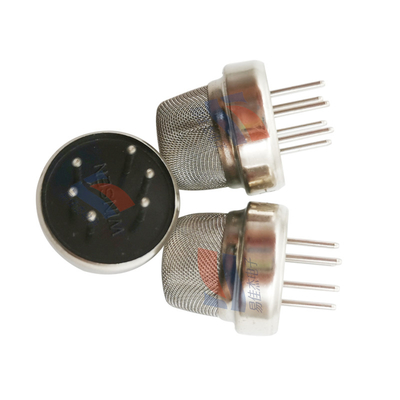

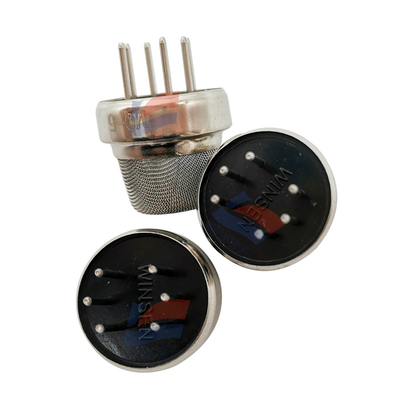

Flammable Gas Sensor MQ-4
Profile:
Sensitive material of MQ-4 gas sensor is SnO2, which with lower conductivity in clean air. When the target flammable gas exist, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.
MQ-4 gas sensor has high sensitivity to methane, also has anti-interference to alcohol and other gases.
Features:
It has good sensitivity to methane in wide range, and has advantages such as long lifespan, low cost and simple drive circuit &etc.
Main Applications:
It is widely used in domestic gas leakage alarm, industrial flammable gas alarm and portable gas detector.
| Model | MQ-4 | ||
| Sensor Type | Semiconductor | ||
| Standard Encapsulation | Bakelite, Metal cap | ||
| Target Gas | Methane | ||
| Detection range | 300～10000ppm(CH4) | ||
| Standard Circuit Conditions | Loop Voltage | Vc | 5.0V±0.1V DC |
| Heater Voltage | VH | 5.0V±0.1V AC or DC | |
| Load resistance | RL | Adjustable | |
| Sensor character under standard test conditions | Heater Resistance | RH | 28Ω±3Ω(room temp.) |
| Heater consumption | PH | ≤1W | |
| Sensitivity | S | Rs(in air)/Rs(in 5000ppmCH4)≥5 | |
| Output Voltage | Vs | 2.5V～4.0V (in 5000ppm CH4) | |
| Concentration Slope | α | ≤0.6(R5000ppm/R1000ppmCH4) | |
| Standard test conditions | Temp. Humidity | 20℃±2℃；55%±5%RH | |
| Standard test circuit | Vc:5.0V±0.1V VH:5.0V±0.1V | ||
| Preheat time | Not less than 48 hours | ||
| O2content | 21%(not less than 18%) O2 concentration effects initial value, sensitivity and repeatability. | ||
| Life span | 10 years | ||
