Product Details:
|
| Model: | Model | Sensor Type: | Catalytic Type |
|---|---|---|---|
| Standard Encapsulation: | Plastic Base & Metal Cap | Working Voltage(V): | 2.5±0.1 |
| Measuring Range(%LEL): | 0～100 | Response Time (T90): | ≤10s |
| Highlight: | Plastic Base Flammable Gas Sensor,Metal Cap Flammable Gas Sensor |
||

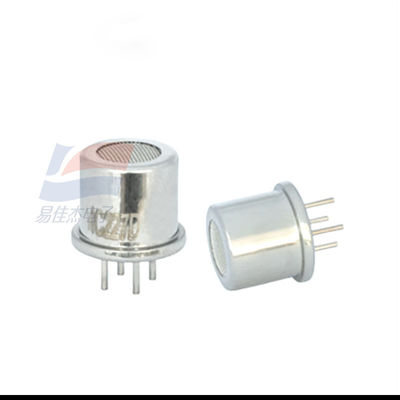

MC227D Catalytic Flammable Gas Sensor
Product :
MC227D adopts catalytic combustion principle, and its two arms of electric bridge consists of a test element and a compensate element. The resistance of the test element rises once it meets the combustible gases, in the same time, the output voltage of the bridge changes and the voltage variation rises in direct proportion to the gas concentration. The compensate element, as a conference, has the function of compensating temperature and humidity.
Features :
Bridge output voltage in linear
Fast response
Good repeatability and selectivity
Good stability and reliability
Resist H2S poisoning & organosilicone.
Main Applications:
It is widely used in public places (not industrial occasion) to detect the concentration or leakage of combustible gases such as natural gas, LPG, coal gas.
| Model | MC227D | |
| Sensor type | Catalytic type | |
| Standard encapsulation | Plastic base & metal cap | |
| Working voltage(V) | 2.5±0.1 | |
| Working current (mA) | 150±10 | |
| Sensitivity (mV) | 20%LEL CH4 | 12～35 |
| 20%LEL C3H8 | 10～30 | |
| Linearity | ≤5% | |
| Measuring range (%LEL) | 0～100 | |
| Response time (90%) | ≤10s | |
| Recovery time (90%) | ≤30s | |
| Working environment | -40～+70℃ <95%RH | |
| Storage environment | -20～+70℃ <95%RH | |
| Life span | 5 years | |
