Product Details:
|
| Target Gases: | Methane, Natural Gas | Range: | 500 ~ 10,000 Ppm |
|---|---|---|---|
| Sensitivity (change Ratio Of Rs): | 0.60 ± 0.06 | Circuit Voltage: | 5.0±0.2V DC/AC |
| Tandard Package: | Tandard Package | Heater Current: | 56 ± 5mA |
| Highlight: | TGS2611-C00 Gas Sensor,Natural Gas Detection Gas Sensor,56 ± 5mA Gas Sensor |
||

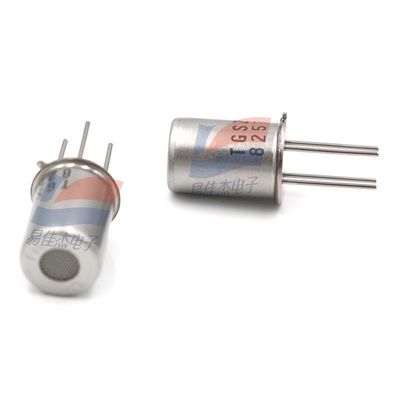

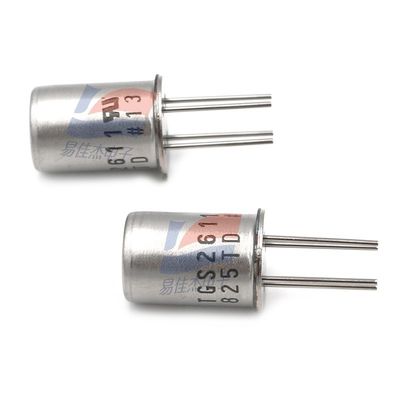

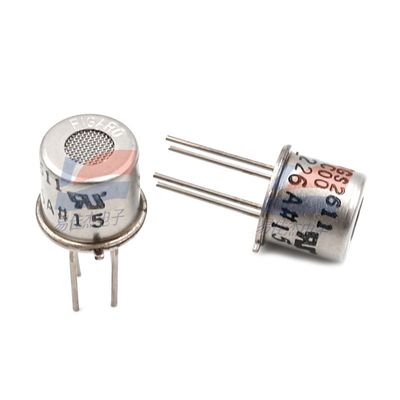

TGS2611-C00 TGS2611-E00 Combustible gas sensor Natural Gas sensor
Features:
Low power consumption
High sensitivity to methane
Long life and low cost
Uses simple electrical circuit
Applications:
Domestic gas alarms
Portable gas detectors
Gas leak detector for gas appliances
Description:
TGS2611 is a semiconductor type gas sensor which combines very high sensitivity to methane gas with low power consumption and long life. Due to miniaturization of its sensing chip, TGS2611 requires a heater current of only 56mA and the device is housed in a standard TO-5 package.
Methane sensor TGS2611-C00 TGS2611-E00
- for the detection of Methane
| Heater resistance | 59Ω at room temp. (typical) |
| Heater current | 56 ± 5mA |
| Heater power consumption | 280±25mW |
| Conditioning period before test | 7 days |
| Standard package | TO-5 metal can |
| Sensing element type | D1 |
