Product Details:
|
| Model: | TGS2619-C00 TGS2619-E00 | Detection Principle: | Oxide Semiconductor Type |
|---|---|---|---|
| Standard Package: | TO-5 Metal | Object Gas: | Methane, Natural Gas |
| Detection Range: | 500-10,000ppm | Heater Voltage: | 5.0±0.2V AC/DC |
| Highlight: | TGS2619-E00 Gas Sensor,Industrial Settings Methane Gas Sensor,Industrial Settings Gas Sensor |
||

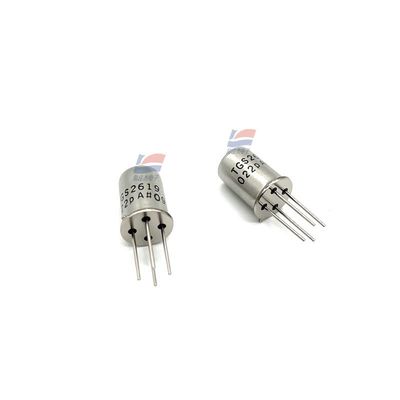

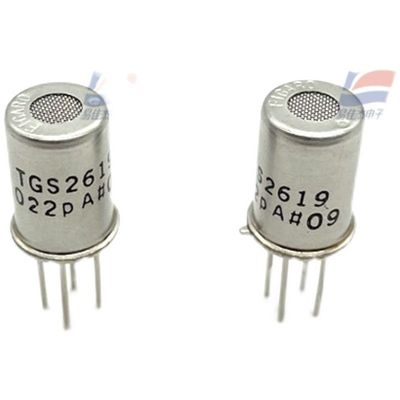

TGS2619-C00 TGS2619-E00 Gas Sensor Used for Detecting Methane
Features:
Low power consumption
It has high sensitivity to methane gas
Long service life and low cost
The application circuit is simple
Application:
Household gas leakage alarm
Portable gas detector
Conduct leakage detection on gas facilities
The TGS2619 has a high sensitivity to methane gas. Due to its low sensitivity to volatile alcohol (a common interfering gas in living environments), it is an ideal sensor for household gas leakage alarms. Due TO the small size of the sensitive element, the heater current of TGS2619 only requires 56mA, and the detection part of the sensor is contained in a standard TO-5 metal package.

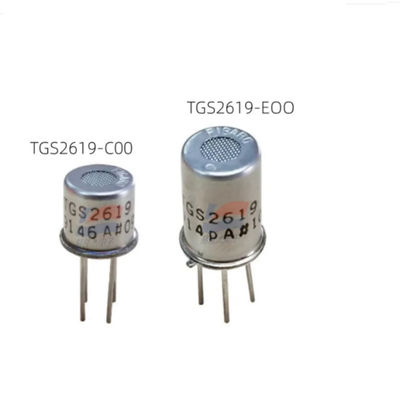

The TGS2619-C00 is not only small in size but also has excellent responsiveness. It is an ideal choice for gas leakage detectors.
The TGS2619-E00 is equipped with a filter cover that can eliminate the influence of interfering gases such as alcohol, and it has a highly sensitive characteristic of extremely high selectivity for methane gas. It is especially suitable for appliances that conduct detection in complex atmospheres and strict requirements of home environments, and is an ideal sensor for household gas leakage detectors.
| Heater resistance | room temperature is approximately 59Ω |
| Heater current | 56±5mA |
| Heater power consumption | 280mW±25mW |
| Sensor resistance | 0.68 ~ 6.8 k Ω In 5000ppm of methane |
| Loop condition | VC = 5.0±0.01V DC VH = 5.0±0.05V DC |
| Preheating time before the test | Seven days |
