Product Details:
|
| Model Number: | TGS5141 | Target Gases: | Carbon Monoxide |
|---|---|---|---|
| Typical Detection Range: | 0 ~ 5,000ppm | Output Current In CO: | 1.2~3.2nA/ppm |
| Baseline Offset(*1): | <±10ppm Equivalent | Operating Temperature: | -10˚C ~ +50˚C (continuous)-20˚C ~ +60˚C (intermittent |
| Highlight: | 50˚C CO Sensor,5000ppm CO Sensor,High Sensitivity CO Sensor |
||

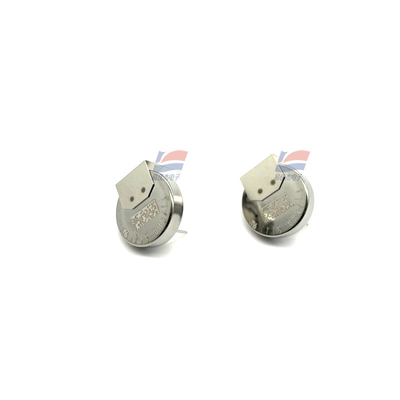

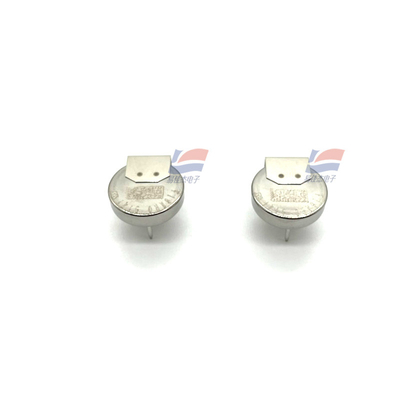

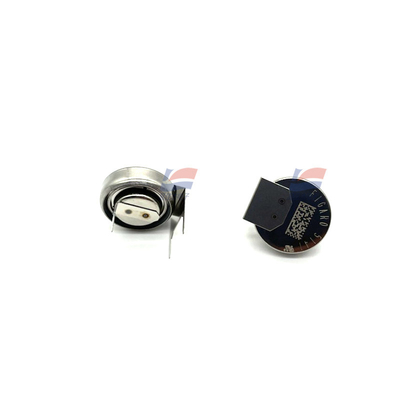

TGS5141 Compact CO Sensor
Product Description:
Descriptions of TGS5141:
一,Main Specifications:
1)Typical detection range: 0-5000ppm
2)Output:1.2-3.2nA/ppm
3)Response time:〈 60s
4)Operating temperature:-10℃ ~ +50℃ (continuous) -20℃ ~+60℃(intermittent)
5)Operating humidity:10 - 95%RH (no condensation)
二,Main Features:
1)Ultra compact
2)Battery operable
3)High repeatability/selectivity to CO
4)Linear relationship between CO gas concentration and sensor output
5)Simple calibration
6)Long life
7)UL recognized component
8)Meets UL2034, EN50291, and EN54-31 requirements
三,Typical Applications:
Carbon monoxide alarm(battery operable)
Residential and commercial CO detector
Industrial CO monitor
Ventilation control of parking garage
Portable CO concentration meter
Fire detection
| Operating humidity | 10 ~ 95%RH (no condensation) |
| Response time (T90) | within 60 seconds |
| Storage conditions | -10˚C ~ +50˚C (continuous) |
| Weight | approx. 2.5g |
| Standard test conditions | 20±2˚C, 40±10%RH |
