Product Details:
|
| Model Number: | TGS6812-D00 | Sensing Element Type: | Catalytic |
|---|---|---|---|
| Catalytic: | Hydrogen, Methane, Iso-butane | Typical Detection Range: | 0~100%LEL Of Each Gas |
| Operating Voltage: | 3.0±0.1V AC/DC | Heater Current: | 175mA (typical) |
| Highlight: | Heater current 175mA Gas sensor,LP Gas sensor,3.0±0.1V AC/DC Gas sensor |
||

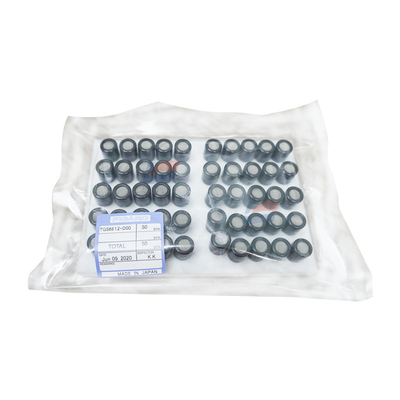

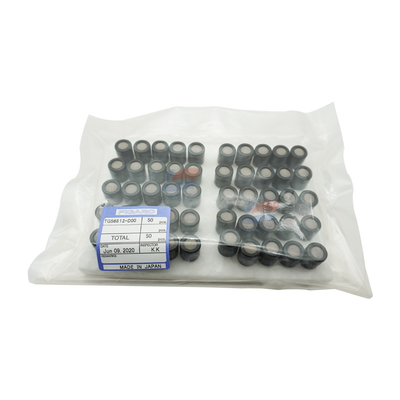

TGS6812-D00 Methane and LP Gas sensor
Features:
* Linear output
* Long life
* Small sensitivity to alcohol
* Sensitive to hydrogen, methane, and LP gas
Applications:
* Hydrogen and combustible gas leak detectors for fuel cells
The TGS6812-D00 catalytic type gas sensor can detect levels of hydrogen up to 100%LEL. This sensor features high accuracy, good durability and stability, quick response, and linear output. This sensor can detect not only hydrogen, but also methane and LP gas, thus making it an excellent solution for monitoring gas leakage from staionary fuel cell systems which transform combustible gases into hydrogen. As the sensor possesses an adsorbent inside its sensor cap, its cross sensitivity to organic vapors is small. In addition, TGS6812-D00 is durable against silicone compounds in harsh environments.
The figure below represents typical sensitivity characteristics, all data having been gathered at standard test conditions (see reverse side of this sheet). The Y-axis is indicated as sensor output sensitivity -- ΔVout (mV):
ΔVout = Vout in gas - Vout in air
| Test gas conditions | Hydrogen/methane/iso-butane in air at 20±2˚C, 65±5%RH |
| Circuit conditions | 3.0±0.05V AC/DC |
| Conditioning period before test | ≤30 sec. |
| Operating conditions | -10˚C~+70˚C, ≤95%RH (w/o dew condensation |
