ZPHS01C Multi-in-One Sensor Module Detects PM2.5 CO2 CH2O TVOC Temperature Humidity with High Sensitivity

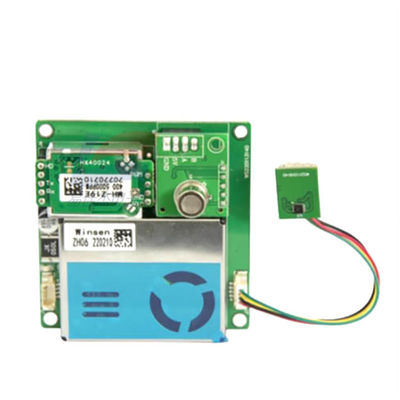

Large Image : ZPHS01C Multi-in-One Sensor Module Detects PM2.5 CO2 CH2O TVOC Temperature Humidity with High Sensitivity

Product Details:

Place of Origin:	CN
Model Number:	ZPHS01C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

ZPHS01C Multi-in-One Sensor Module Detects PM2.5 CO2 CH2O TVOC Temperature Humidity with High Sensitivity

Description

Model:	ZPHS01C	Target Gas:	PM2.5, CO2, CH2O, TVOC,Temperature&Humidity
Interference Gas:	Alcohol/CO Gas…etc.	Working Voltage:	5V (DC)
Model ZPHS01C Target Gas PM2.5, CO2, CH2O, TVOC,Temperature&Humidity Interference Gas Alcohol/CO Gas:	＜500 MA	Interface Level:	3 V(compatible With 3.3V)
Highlight:	PM2.5 Sensor Module , Multi-in-One Sensor Module , CH2O Sensor Module

ZPHS01C Multi-in-One Sensor Module

Description:

This module integrates Electrochemical formaldehyde,
Semiconductor VOC sensor, Laser particle sensor, NDIR CO2 sensor and temperature& humidity sensor. (Users could choose CH2O version or VOC version, they are not concomitant.)
Communication Interface: TTL serial, Baud rate:9600, data bit:8, stop bit:1, parity bit: none.

Application:

Gas detector
Air conditioner
Air quality monitoring
Air purifier 
HVAC system
Smart home

Features:

see manual

Specifications:

Model	ZPHS01C
Target Gas	PM2.5, CO2, CH2O, TVOC,Temperature&Humidity
Interference gas	Alcohol/CO gas…etc.
Working voltage	5V (DC)
Average Current	＜500 mA
Interface level	3 V(compatible with 3.3V)
Output signal	UART(TTL)
Interface type	MX 1.25-4P
Preheat time	≤ 3min
CO2 range	400~5000ppm
PM2.5 range	0~1000ug/m3
CH2O range	0~1.6ppm
TVOC range	4 grades
Tem. range	0～65℃
Tem. precision	±0.5℃
Hum. range	0~100% RH
Hum. precision	±3%
Working Tem.	0～50℃
Working Hum.	15~80% RH(no condensation)
Storage Tem.	0～50℃
Storage Hum.	0~60% RH
Size	62.5mm (L) x 61mm(W) x 25mm(H)

ZPHS01C Multi-in-One Sensor Module Detects PM2.5 CO2 CH2O TVOC Temperature Humidity with High Sensitivity 0
