ZP16-A Air-Quality Detection Module High Sensitivity Excellent Long-term Stability

Large Image : ZP16-A Air-Quality Detection Module High Sensitivity Excellent Long-term Stability

Product Details:

Place of Origin:	CN
Model Number:	ZP16-A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

ZP16-A Air-Quality Detection Module High Sensitivity Excellent Long-term Stability

Description

Output:	UART(5V)	Working Current:	≤60mA
Warm-up Time:	3minutes	Operating Temperature:	0～50℃
Operating Humidity:	≤95％RH	Storage Temperature:	－20～60℃

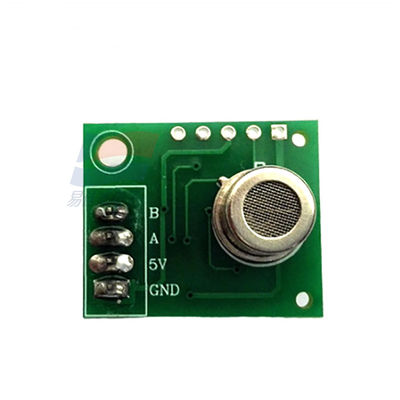

ZP16-A Air-Quality Detection Module

Description:

The ZP16-A air quality module uses an advanced chip thick film semiconductor gas sensitive element. The module has good sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of cigarette, essence & etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.

Application:

Air cleaner, fresh-air system, intelligent integrated ceiling, air quality detector, ventilator, air-condition.

Features:

High sensitivity
Excellent long-term stability
Low power consumption
Long life
Calibrated before shipment
Convenient use

Specifications:

Model No.	ZP16-A
Detection Gas	formaldehyde, benzene, carbon monoxide, hydrogen, alcohol, ammonia, smoke of cigarette, essence &etc.
Physical Interface	XH2.54-4P terminal sockets
Measurement range	VOC:0-2.000mg/m3 CO2:350-2000ppm CH2O:0-1.000mg/m3
Working Voltage	5.0±0.2V DC(No voltage reverse connect protection)
Output	UART(5V)
Working Current	≤60mA
Warm-up Time	3minutes
Operating Temperature	0～50℃
Operating Humidity	≤95％RH
Storage Temperature	－20～60℃
Storage Humidity	≤60％RH
Size	24×20×15mm(L×W×H)
Weight	≤20g
sensitivity degradation	≤1%/year

ZP16-A Air-Quality Detection Module High Sensitivity Excellent Long-term Stability 0
