ZE40-TVOC Air-Quality Detection Module High Sensitivity High resolution Low Power Consumption

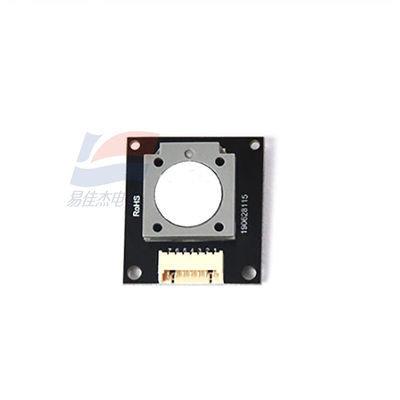

Large Image : ZE40-TVOC Air-Quality Detection Module High Sensitivity High resolution Low Power Consumption

Product Details:

Place of Origin:	CN
Model Number:	ZE40-TVOC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

ZE40-TVOC Air-Quality Detection Module High Sensitivity High resolution Low Power Consumption

Description

Target Gas:	TVOC	Interference Gases:	CO &etc Gas
Working Voltage:	3.7~5.5V	Preheating Time:	≤3 Min
Response Time:	≤60 Sec	Recovery Time:	≤60 Sec
Highlight:	High resolution Air-Quality Detection Module , High Sensitivity Air-Quality Detection Module

ZE40-TVOC Air-Quality Detection Module

Description:

The ZE40-TVOC electrochemical alcohol module is a general-purpose, miniaturized module. The electrochemical principle is used to detect the presence of TVOC in the air, which has good selectivity and stability. Built- in temperature sensor for temperature compensation; digital output and analog voltage output for easy use. ZE40-TVOC is a universal gas module designed and manufactured by combining proven electrochemical detection technology with sophisticated circuit design.

Application:

Alcohol detector, vehicle-mounted detector

Features:

High sensitivity, high resolution, low power consumption, long lifespan UART and analog voltage output
Good stability and excellent anti-interference, temperature compensation, good linearity.

Specifications:

Model No.	ZE40-TVOC
Target Gas	TVOC
Interference gases	CO &etc gas
Output Data	DAC (0.4~2V voltage is corresponding to 0~full scale)
Output Data	UART Output (3V TTL electrical level)
Working Voltage	3.7~5.5V
Preheating time	≤3 min
Response time	≤60 sec
Recovery time	≤60 sec
Detection Range	0~5 ppm
Resolution	≤0.01ppm
Operating Environment	Temp.: 0～50℃
Operating Environment	Humidity.: 15%-90％RH(no condensation)
Storage Temp.	0～25℃
Working Life	3 years (in air)

ZE40-TVOC Air-Quality Detection Module High Sensitivity High resolution Low Power Consumption 0
