MD62 Thermal Conductor CO2 Gas Sensor Detecting Without Oxygen Or Short Of Oxygen

Large Image : MD62 Thermal Conductor CO2 Gas Sensor Detecting Without Oxygen Or Short Of Oxygen

Product Details:

Place of Origin:	CN
Model Number:	MD62

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

MD62 Thermal Conductor CO2 Gas Sensor Detecting Without Oxygen Or Short Of Oxygen

Description

Detection Gas:	CO2	Working Current(mA):	≤120 MA
Sensitivity (mV/10%CO2):	≥5	Response Time (90%):	≤15 S
Resume Time (90%):	≤30 S	Using Environment:	-20－+50℃ ＜95%RH
Highlight:	Short Of Oxygen CO2 Gas Sensor , Without Oxygen CO2 Gas Sensor , MD62 CO2 Gas Sensor

MD62 Thermal Conductor CO2 Gas Sensor

Description:

MD62 gas sensor consists of an active element and a reference element with the same resistance, both elements are placed in a wheatstone bridge circuit, The analyzing gas contents changes, the overall thermal coefficient of mixed gases changed correspondingly; when the active element meet the combustible gas, its resistance become smaller, when It meet other gas, , Its resistance become larger(air background), the bridge circuit output the voltage change, this change increase according to gas concentration, the reference element as a benchmark while for temperature compensation.

Application:

Industrial spot for CO2 detecting.

Features:

Linear output signal
Good reproducibility and reliable performance
Resistant to toxicosis
Detecting without Oxygen or short of oxygen

Specifications:

Detection Gas	CO2
Type	Thermal conduction
Working Voltage (V)	3.0±0.1 (DC)
Working current(mA)	≤120 mA
Sensitivity (mV/10%CO2)	≥5
linearity	≤5%
Response time (90%)	≤15 s
Resume time (90%)	≤30 s
Using Environment	-20－+50℃ ＜95%RH
Storage Environment	-20—+70℃ ＜95%RH
Dimension(mm)	19×9.5×14
Explosion-proof	ExdibⅠ

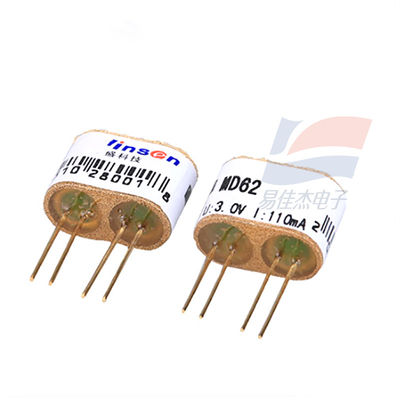

MD62 Thermal Conductor CO2 Gas Sensor Detecting Without Oxygen Or Short Of Oxygen 0
