MH-712B Infrared CO2 Gas Sensor High Sensitivity And resolution Low Power Consumption Fast Response

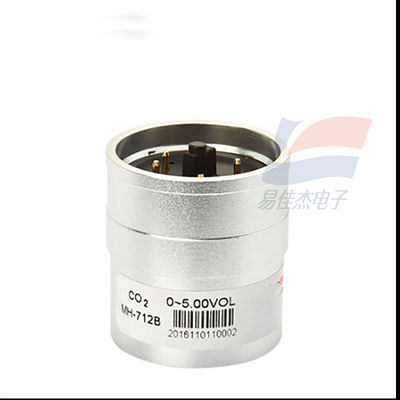

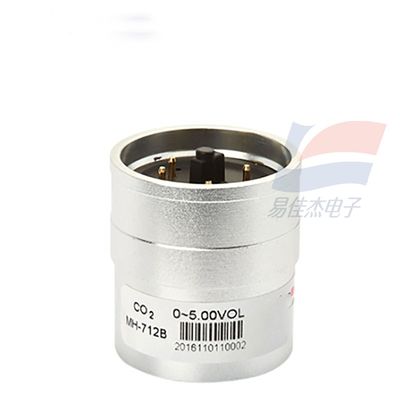

Large Image : MH-712B Infrared CO2 Gas Sensor High Sensitivity And resolution Low Power Consumption Fast Response

Product Details:

Place of Origin:	CN
Model Number:	MH-712B

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

MH-712B Infrared CO2 Gas Sensor High Sensitivity And resolution Low Power Consumption Fast Response

Description

Target Gas:	CO2	Working Voltage:	4.5 V ~ 5.5V DC
Average Current:	< 100mA	Interface Level:	3.3V
Warm-up Time:	< 2min	Response Time:	T90 < 30s
Highlight:	High Resolution Infrared CO2 Gas Sensor , Low Power Infrared CO2 Gas Sensor , Fast Response Infrared CO2 Gas Sensor

MH-712B Infrared CO2 Gas Sensor

Description:

MH-712B is a universal type intelligent sensor to detect CO2 in air taking advantages of non-dispersive infrared (NDIR) principle. With good selectivity, no oxygen dependence, stable performance and long lifespan features, MH-712B also has built-in temperature compensation feature. It is a compact and high-performance sensor based on infrared absorption of gas detection technology, micro-machining and sophisticated circuit design.

Application:

Widely used for industrial field instrumentation, industrial-process control and safety protection

Features:

High Sensitivity and resolution, low power consumption, fast response
Output method: UART, analog voltage output signal, etc.
Temperature compensation, excellent linear output
Good stability
Long lifespan
Anti-poisons, anti-vapor interference

Specifications:

Product Model	MH-712B
Target Gas	CO2
Working Voltage	4.5 V ~ 5.5V DC
Average Current	< 100mA
Interface Level	3.3V
Measurement Range	0~5%VOL optional (view table 2)
Output Signal	UART
Output Signal	0.4-2V DC
Warm-up Time	< 2min
Response Time	T90 < 30s
Working Temp.	-40℃ ~ 70℃
Working Humidity	0 ~ 95%RH, Non-condensing
Dimension	Φ39×44mm
Weight	280g
Life Span	>5 years
Protected Class	IP54

MH-712B Infrared CO2 Gas Sensor High Sensitivity And resolution Low Power Consumption Fast Response 0
