MH-V1512A NDIR CO2 Module Universal Small Sensor Long Service Life

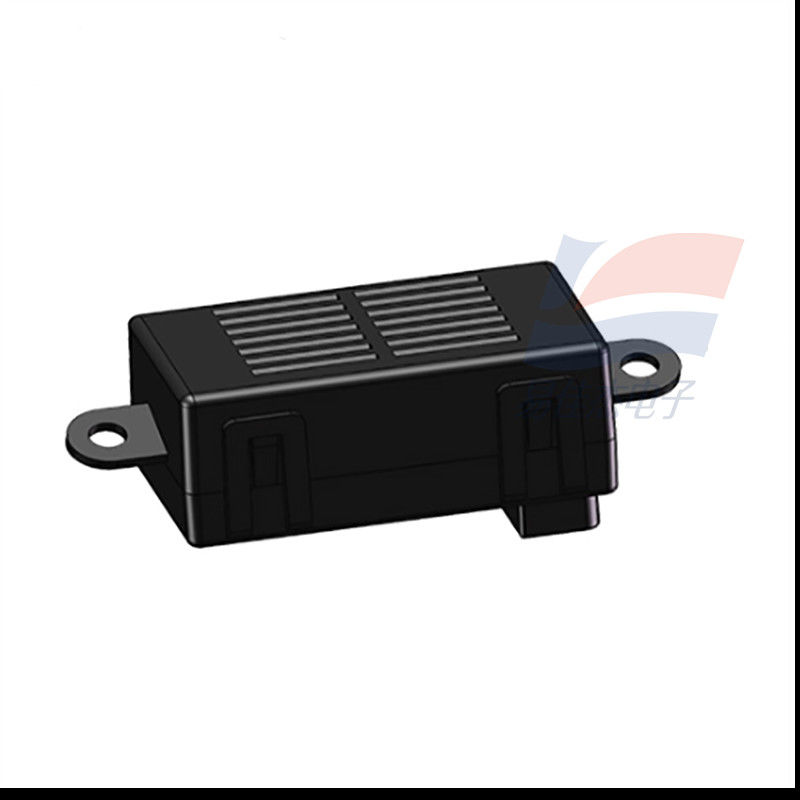

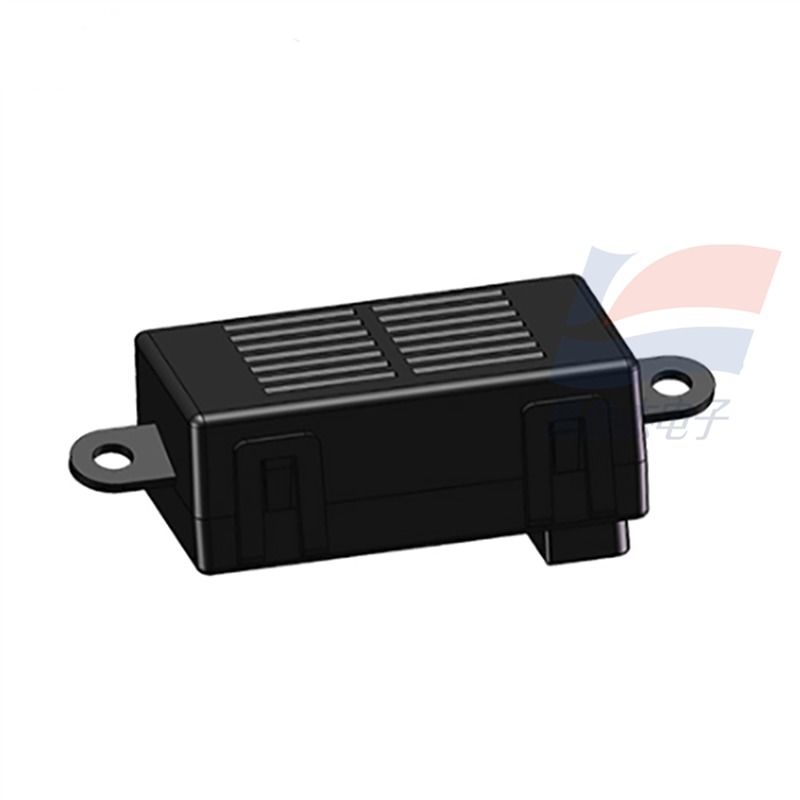

Large Image : MH-V1512A NDIR CO2 Module Universal Small Sensor Long Service Life

Product Details:

Place of Origin:	CN
Model Number:	MH-V1512A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

MH-V1512A NDIR CO2 Module Universal Small Sensor Long Service Life

Description

Detection Target:	CO2	Detection Range:	400～10000ppm Optional
Resolution Ratio:	1ppm	Operating Voltage:	DC (9～16)V
Operating Current:	＜40mA	Peak Current:	≤125mA
Highlight:	Long Service Life Sensor , NDIR CO2 Module , MH-V1512A NDIR CO2 Module

MH-V1512A NDIR CO2 Module

Description:

MH-V1512A-LGC is a general purpose, miniaturized sensor that uses non-dispersive infrared (NDIR) principle to detect CO2 in the car. It has good selectivity, high sensitivity, low power consumption, no oxygen dependence, long life and other characteristics. It can be used to monitor the CO2 concentration in the car to avoid fatigue driving caused by excessive concentration, thereby avoiding vehicle safety accidents.

Application:

Car Air Conditioning System
Car Detector
Car Fresh Air System

Features:

Universal small sensor
Long service life
High sensitivity
Ultra-low power
Water and corrosion resistant
Resistance to water vapor interference
Not poisoned

Specifications:

Detection principle	NDIR
Detection target	CO2
Detection range	400～10000ppm optional
Resolution ratio	1ppm
Detection accuracy	±75ppm/±10% Reading value(-5℃～45℃) ±200ppm/±20% Reading value(-40℃～-5℃, 45℃～85℃)
Operating voltage	DC (9～16)V
Operating current	＜40mA
Peak current	≤125mA
Power consumption	＜0.48W
Preheating time	20s
Response time	T90＜60s
Recovery time	T10＜60s
Operating temperature	-40℃～85℃
Storage temperature	-40℃～85℃
Operating humidity	0～95%RH (No condensation)
Output mode	LIN/PWM (Customizable)

MH-V1512A NDIR CO2 Module Universal Small Sensor Long Service Life 0
