NDIR CO2 Module with Consumption MH-Z19D High Sensitivity Long Life Span -20-60 C Temperature Range

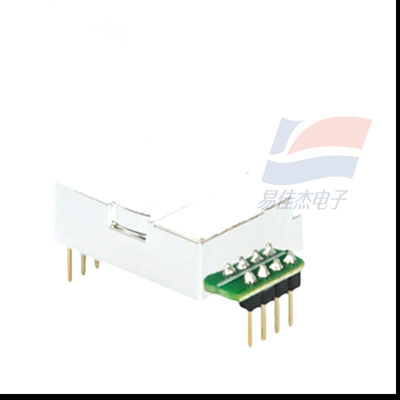

Large Image : NDIR CO2 Module with Consumption MH-Z19D High Sensitivity Long Life Span -20-60 C Temperature Range

Product Details:

Place of Origin:	CN
Model Number:	MH-Z19D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

NDIR CO2 Module with Consumption MH-Z19D High Sensitivity Long Life Span -20-60 C Temperature Range

Description

Detection Gas:	CO2	Working Voltage:	5.0±0.1V DC
Preheat Time:	1 Min	Response Time:	T90 <120s
Working Temperature:	0 ~ 50℃	Storage Temperature:	-20~60 ℃
Highlight:	High Sensitivity NDIR CO2 Module , Long Life Span NDIR CO2 Module , MH-Z19D NDIR CO2 Module

MH-Z19D NDIR CO2 Module

Description:

MH-Z19D NDIR infrared gas module is a common type, small size sensor, pins type or terminal type, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has UART output and PWM output. It is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.

Application:

Smart home
Air cleaner device
Indoor air quality monitoring
Ventilation system

Features:

High sensitivity
Low power consumption
Good stability
Temperature compensation, excellent linear output
Multiple output modes: UART, PWM
Long life span
Anti-water vapor interference, anti-poison

Specifications:

Model No.	MH-Z19D
Detection gas	CO2
Working Voltage	5.0±0.1V DC
Average Current	<40mA (@5V power supply)
Peak Current	125mA (@5V power supply)
Interface Level	3.3V (Compatible with 5V)
Detection range	400~10000ppm (optional, see table 2.)
Output Signal	Serial Port (UART) (TTL level 3.3V)
Output Signal	PWM
Preheat Time	1 min
Response Time	T90 <120s
Working Temperature	0 ~ 50℃
Working Humidity	0 ~95% RH (No condensation)
Storage Temperature	-20~60 ℃
Weight	5g
Life Span	> 5 years

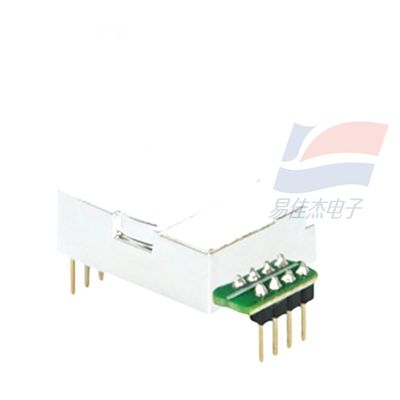

NDIR CO2 Module with Consumption MH-Z19D High Sensitivity Long Life Span -20-60 C Temperature Range 0
