MEs-CO Carbon Monoxide Sensor Low Consumption High Precision Excellent Repeatability And Stability

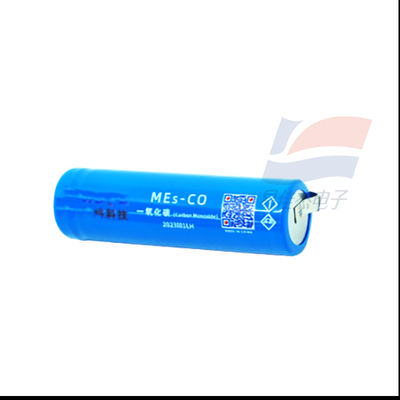

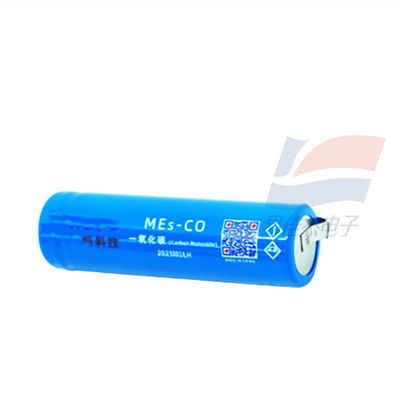

Large Image : MEs-CO Carbon Monoxide Sensor Low Consumption High Precision Excellent Repeatability And Stability

Product Details:

Place of Origin:	CN
Model Number:	MEs-CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

MEs-CO Carbon Monoxide Sensor Low Consumption High Precision Excellent Repeatability And Stability

Description

Detection Gas:	CO	Measurement Range:	0～1000ppm
Max Detecting Concentration:	2000ppm	Sensitivity:	(1.0~2.0) NA/ppm
Resolution:	1ppm	Response Time（T90）:	＜30S
Highlight:	CO Carbon Monoxide Sensor , Low Consumption CO Carbon Monoxide Sensor , Excellent Repeatability CO Carbon Monoxide Sensor

MEs-CO Carbon Monoxide sensor

Description:

MEs-CO Carbon monoxide sensor is a fuel cell type sensor. Carbon monoxide and oxygen undergo corresponding REDOX reaction on the working electrode and the opposite electrode and release charge to form current. The current generated is proportional to the concentration of carbon monoxide and follows Faraday's law.

Application:

Widely suitable for carbon monoxide concentration detection in smart homes, commercial buildings, underground garages, fire monitoring and other fields

Features:

Low consumption
High precision
High sensitivity
Wide linear range
Good anti-interference ability
Long lifespan
Excellent repeatability and stability

Specifications:

Detection gas	CO
Measurement Range	0～1000ppm
Max detecting concentration	2000ppm
Sensitivity	(1.0~2.0) nA/ppm
Resolution	1ppm
Response time(T90)	＜30S
Load resistance(recommended)	500/1k/2k Ω
Repeatability	＜3﹪output value
Output Linearity	linear
Zero drift(-20℃～40℃)	≤10ppm
Temperaturerange	-20℃～80℃
Humidityrange	15﹪～90﹪RH
Pressure range	standard atmosphere±10%
Lifespan	10 years

MEs-CO Carbon Monoxide Sensor Low Consumption High Precision Excellent Repeatability And Stability 0
