ZE33 Water Heater Gas Leakage and Incomplete Combustion Detection Module

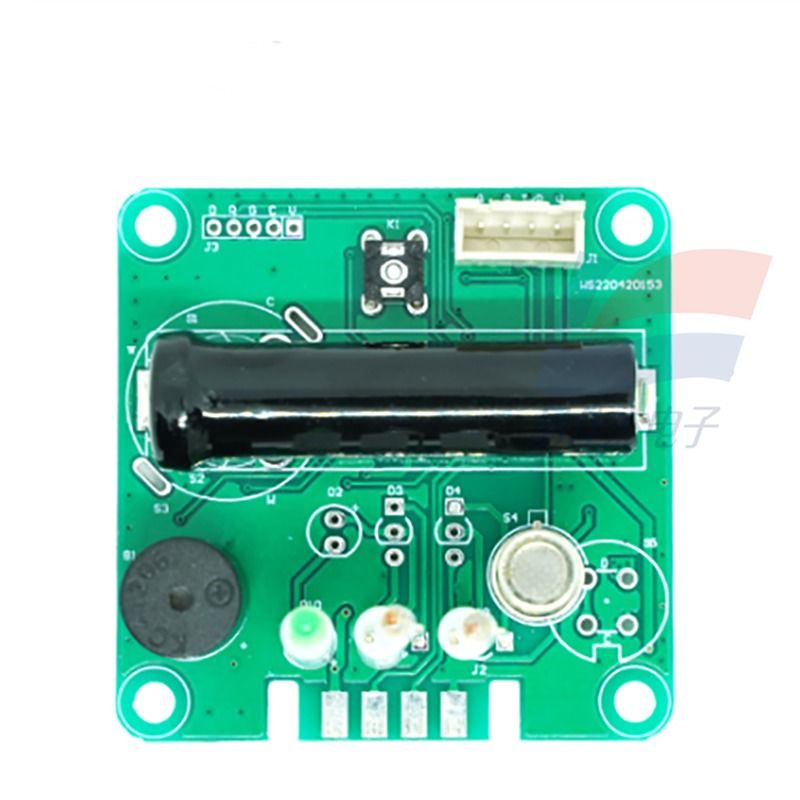

Large Image : ZE33 Water Heater Gas Leakage and Incomplete Combustion Detection Module

Product Details:

Place of Origin:	CN
Model Number:	ZE33

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

ZE33 Water Heater Gas Leakage and Incomplete Combustion Detection Module

Description

RecoveryTime:	≤30 S	Detection Gas:	CO, CH4
CO, CH4:	CO：0～500ppm CH4：0～5000ppm	Interfering Gas:	Alcohol, Etc.
Working Temperature:	-10℃～55℃	Working Voltage:	5V DC
Highlight:	Gas Leakage Module ZE33 , Incomplete Combustion Module ZE33 , Incomplete Combustion Detection Module

ZE33 Water Heater Gas Leakage and Incomplete Combustion Detection Module

Description:

Water heater gas leakage and incomplete combustion detection module using electrochemical carbon monoxide sensor and combustible gas sensor developed a special detection of gas water heater incomplete combustion and gas leakage module. It uses the electrochemical principle to detect carbon monoxide gas produced by incomplete combustion in the air, and has good selectivity and stability.

Application:

Detection and alarm of gas leakage and incomplete combustion of household gas water heater.

Features:

The module has sound and light alarm output, and PWM digital signal output mode.

Specifications:

Model	ZE33	RecoveryTime	≤30 s
Detection Gas	CO, CH4	Detection Range	CO:0～500ppm CH4:0～5000ppm
Interfering gas	Alcohol, etc.	Alarm concentration	CO: Alarm 1: 250±50ppm Alarm 2:350±50ppm CH4:8%±3% LEL
Output	PWM	Alarm concentration	CO: Alarm 1: 250±50ppm Alarm 2:350±50ppm CH4:8%±3% LEL
Alarm mode	Audible and visual alarm	Working Temperature	-10℃～55℃
Working Voltage	5V DC	Working Humidity	15%-90%RH (non-condensing)
Preheat Time	CO 30s/CH4 3min	Storage Temperature	-10℃～55℃
Response Time	≤60 s	Lifespan	5 years (in air)

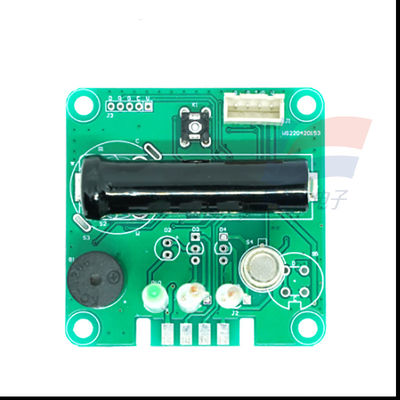

ZE33 Water Heater Gas Leakage and Incomplete Combustion Detection Module 0
