MEu-CO Carbon Monoxide Sensor Excellent Repeatability And Stability

Large Image : MEu-CO Carbon Monoxide Sensor Excellent Repeatability And Stability

Product Details:

Place of Origin:	CN
Model Number:	MEu-CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	5000pcs

Contact Now

MEu-CO Carbon Monoxide Sensor Excellent Repeatability And Stability

Description

Item:	Parameter	Detection Gas:	Carbon Monoxide(CO)
Measurement Range:	0～1000ppm	MaxRange:	2000ppm
Sensitivity:	(0.085±0.015）nA/ppm	Response Time（T90）:	＜15S
Highlight:	Carbon Monoxide Sensor , MEu-CO Carbon Monoxide Sensor , Excellent Repeatability Carbon Monoxide Sensor

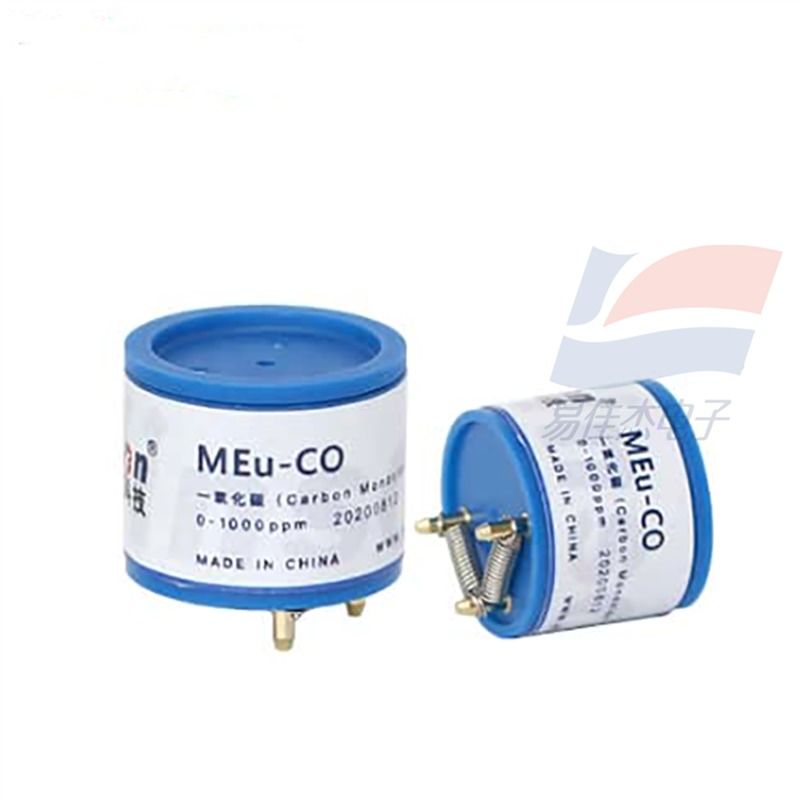

MEu-CO Carbon Monoxide Sensor

Description:

The MEu-CO sensor is a fuel cell sensor. Carbon monoxide and oxygen undergo a corresponding oxidation-reduction reaction on the working electrode and counter electrode and release charges to form a current. The current generated is proportional to the concentration of carbon monoxide and follows Faraday's law. The size can determine the concentration of carbon monoxide.

Application:

CO detection in industrial occasions like petroleum, petrochemical, metallurgy, mining and environmental fields.
Portable carbon monoxide detection instrument
Fixed point carbon monoxide detector

Features:

Excellent repeatability and stability

Specifications:

Item	Parameter
Detection gas	Carbon monoxide(CO)
Measurement Range	0～1000ppm
MaxRange	2000ppm
Sensitivity	(0.085±0.015)nA/ppm
Response time(T90)	＜15S
Zero point output (in clean air)	＜±2ppm(Equivalent CO)
Zero drift(-40℃～﹢50℃)	＜﹢10ppm(Equivalent CO)
Repeatability	＜±3% output value
Linearity	Within±5%
Stability (Average decay/month)	＜2%
Filter	Acid gas, organic vapor

MEu-CO Carbon Monoxide Sensor Excellent Repeatability And Stability 0
