Working current 5mA ZE16-CO Electrochemical Carbon Monoxide Gas Module with Output data UART output

Large Image : Working current 5mA ZE16-CO Electrochemical Carbon Monoxide Gas Module with Output data UART output

Product Details:

Place of Origin:	CN
Model Number:	ZE16-CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

Working current 5mA ZE16-CO Electrochemical Carbon Monoxide Gas Module with Output data UART output

Description

Detection Gas:	Carbon Monoxide（CO Gas）	Interfering Gases:	Alcohol, Etc.
Output Data:	UART Output	Working Voltage:	5V (DC)
Working Current:	<5mA	Preheating Time:	30 Seconds
Highlight:	5mA Electrochemical Gas Module , Electrochemical Carbon Monoxide Gas Module , Working current Electrochemical Gas Module

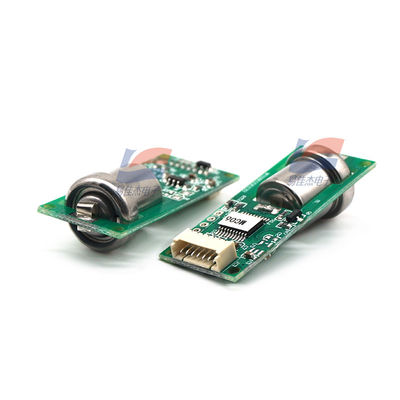

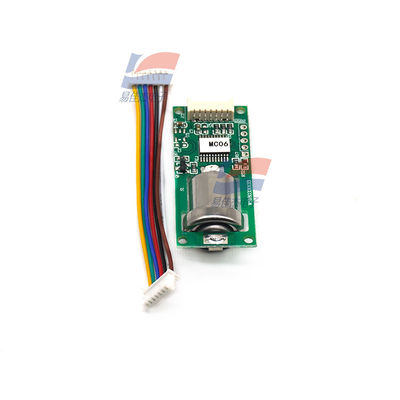

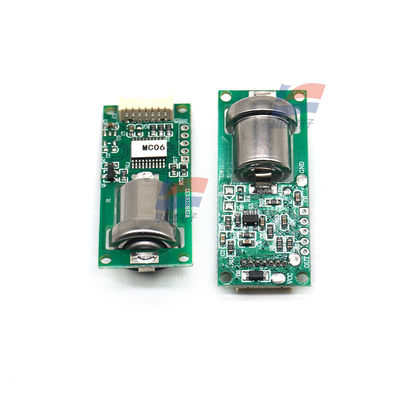

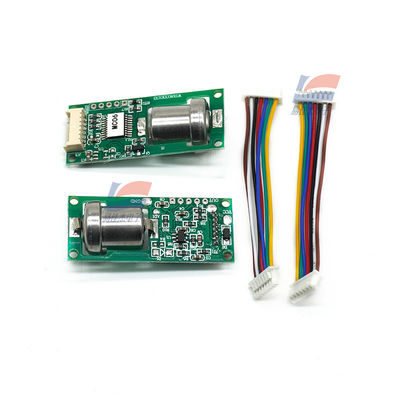

ZE16-CO Electrochemical Carbon Monoxide Gas Module

Description:

ZE16-CO is a general-purpose and miniaturization electrochemical carbon monoxide detection module. It utilizes electrochemical principle to detect CO in air which makes the module with high selectivity and stability. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. It is a combination of mature electrochemical detection principle and sophisticated circuit design.

Application:

For residential occasions to detect CO concentration, smart home.

Features:

Supply different output ways: UART, analog voltage, etc.

Specifications:

Model No.	ZE16-CO
Detection gas	Carbon Monoxide(CO gas)
Interfering gases	Alcohol, etc.
Output data	UART output
Working voltage	5V (DC)
Working current	<5mA
Preheating time	30 seconds
Response time	≤30 seconds
Recovery time	≤30 seconds
Detection range	0～500ppm
Resolution	1ppm
Working temperature	-10℃～55℃
Working humidity	15%RH-90%RH(no condensation)
Storage temperature	-10℃～55℃
Life span	2 years(in air)

Working current 5mA ZE16-CO Electrochemical Carbon Monoxide Gas Module with Output data UART output 0
