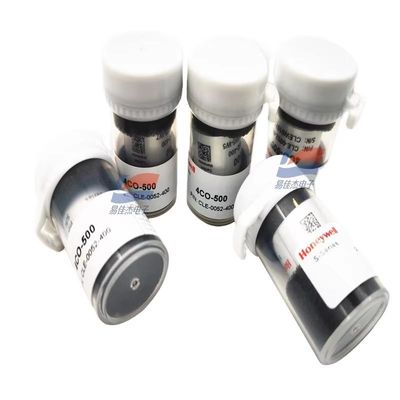

YJJ 4CO-500 Original CLE-0052-400 4CO-2000 Carbon Monoxide CO Sensor Electrochemical Sensor

Product Description:

4CO-500 Original CLE-0052-400 4CO-2000 Carbon Monoxide CO Sensor Electrochemical Sensor

Features:

Carbon monoxide sensor 0-500 ppm

Performance characterization

Product model CLE-0052-400

Range: 0 to 500 ppm

Load: 2000 ppm

Sensitivity: 0.070 ± 0.015 mA/ppm

Baseline (20 ℃) < ± 0.2 mA

Baseline drift is equivalent to 0 to 3 ppm

(-20 to 40 ℃)

Resolution: 1 ppm

Response time (T90) : 30 seconds

Linearity Linear

Long-term stability < 2% signal value per month.

Working conditions

Operating temperature: -20 ℃ to 50 ℃

Operating humidity: 15 to 90% RH (no condensation)

The working pressure is 90 to 110 kPa

Bias voltage: 0 mV

Storage time: 6 months (in the packaging box)

Storage temperature: 0 ℃ to 20 ℃

The service life is 2 years in air and 18 months after delivery

Physical properties

It weighs about 5 grams

There is no requirement for orientation.

Influence of temperature

Specifications:
