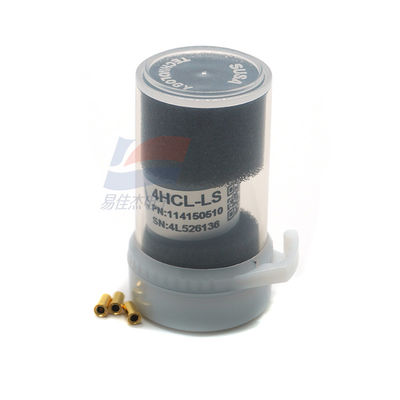

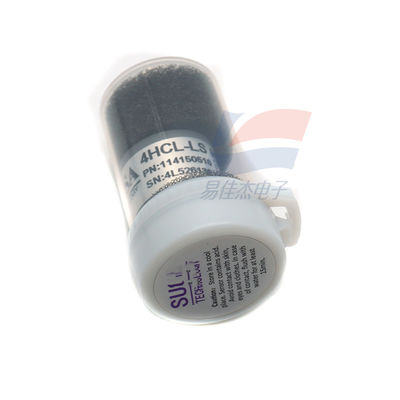

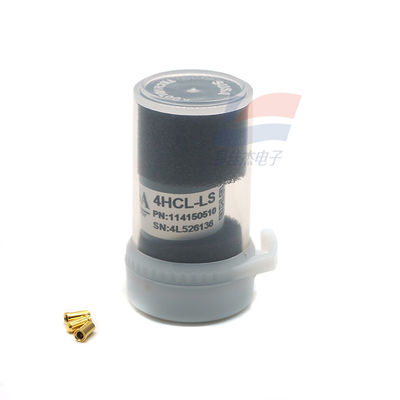

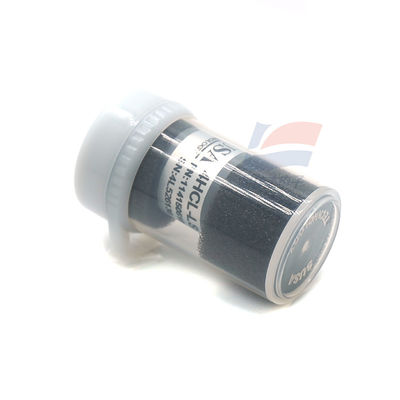

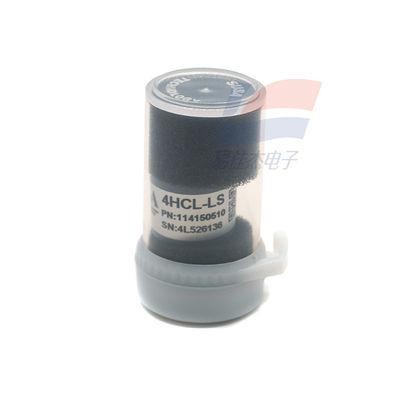

YJJ 4HCL-LS 114-150-510 0-50PPM Electrochemical Hydrogen Chloride Sensor (HCL) Operating temperature range -20C to 50C

Large Image : YJJ 4HCL-LS 114-150-510 0-50PPM Electrochemical Hydrogen Chloride Sensor (HCL) Operating temperature range -20C to 50C

Product Details:

Place of Origin:	USA
Brand Name:	SUSA
Model Number:	4HCL-LS 114-150-510

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Canned
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500

Contact Now

YJJ 4HCL-LS 114-150-510 0-50PPM Electrochemical Hydrogen Chloride Sensor (HCL) Operating temperature range -20C to 50C

Description

Maximum Detectable Concentration:

100ppm

Normal Detection Range:

0-50ppm

Operating Temperature Range:

-20℃ To 50℃

Type:

Electrochemical Gas Sensor

Highlight:

114-150-510 HCL Sensor

0-50PPM HCL Sensor

4HCL-LS HCL Sensor

Product Description:

4HCL-LS 114-150-510 0-50PPM Electrochemical Hydrogen Chloride Sensor (HCL)

Features:

4HCL-LS 114-150-510 0-50PPM gas sensor for hydrogen chloride gas concentration detection

4HCl hydrogen chloride sensor
Brand: SUSA
Typical application: Detection of hydrogen chloride gas concentration
Range: 0-50ppm
Product Number: 114-150-510
Response time: T90≤70 seconds
Resolution: 1ppm
Sensitivity: 0.3±0.1μA/ppm
Maximum detectable concentration: 100ppm
Normal detection range: 0-50ppm
Operating temperature range: -20℃ to 50℃
Type: Electrochemical gas sensor

Specifications:

Range	0 to 50 ppm
Load	1000 ppm
Sensitivity	0.3±0.1μA/ppm
Baseline (20 ℃)	< ± 0.2 mA

YJJ 4HCL-LS 114-150-510 0-50PPM Electrochemical Hydrogen Chloride Sensor (HCL) Operating temperature range -20C to 50C 0
