4HCl-LS 114-150-510 Hydrogen Chloride Gas Sensor Electrochemical Three Electrodes

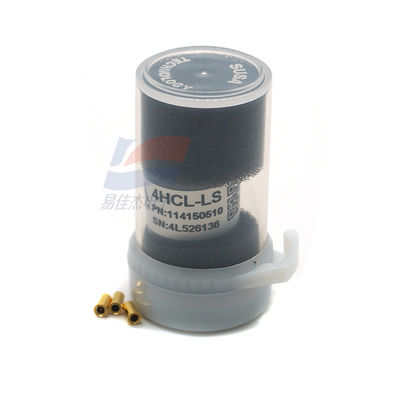

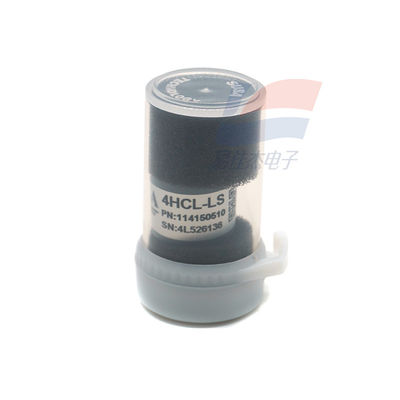

Large Image : 4HCl-LS 114-150-510 Hydrogen Chloride Gas Sensor Electrochemical Three Electrodes

Product Details:

Place of Origin:	UK
Brand Name:	SUSA
Model Number:	4HCl-LS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

4HCl-LS 114-150-510 Hydrogen Chloride Gas Sensor Electrochemical Three Electrodes

Description

Detection Range:

0-50 Ppm

Maximum Load:

100 Ppm

Bottom Current:

0-1 μA

Zero Drift:

(-20 To 50°C) 0-3 Ppm

Highlight:

Three Electrodes Electrochemical Gas Sensor

4HCl-LS 114-150-510 Gas Sensor

510 4HCl-LS Electrochemical Gas Sensor

4HCl-LS 114-150-510 Hydrogen Chloride Gas Sensor Electrochemical Three Electrodes

4HCL-LS refers to a type of electrochemical gas sensor specifically designed to detect hydrogen chloride (HCl) gas. It is a three-electrode sensor, meaning it uses three electrodes to measure the concentration of HCl in the surrounding atmosphere. This sensor is suitable for industrial and commercial applications where monitoring HCl levels is crucial.

Basic performance

Sensitivity	300±80 nA/ppm (positive signal)
Response time	< 70 s
Repeatability	<±2% of signal/month
Linearity Linear to	100 ppm

Electrical

Resolution	0.1 ppm
Bias voltage	+200 mV
Recommended resistance	5-30 Ω

Physical properties

Weight	< 5 g
Orientation requirements	None

Work Environment

Intended Use	Suitable for most life safety detectors
Operating temperature range	-40 to 50°C
Operating pressure range	800-1200 mbar
Operating humidity range	15%-90% RH (non-condensing)

Warranty life

Recommended storage environment	In a sealed container at 0-20°C
Expected service life	In air 24 months
Storage period	Original packaging 6 months
Warranty period	12 months

4HCl-LS 114-150-510 Hydrogen Chloride Gas Sensor Electrochemical Three Electrodes 0
