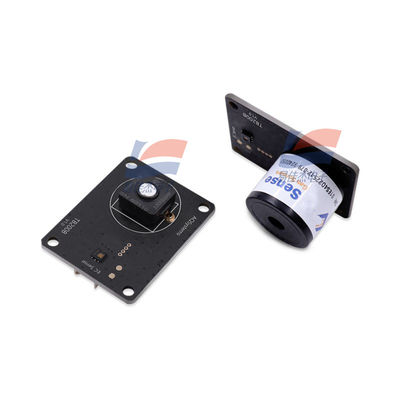

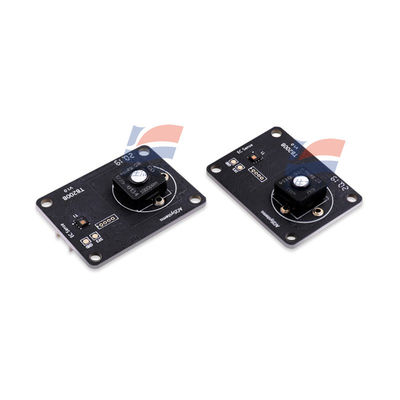

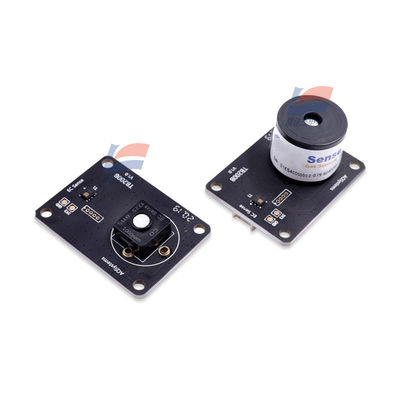

TB200B-ES1 TVOC Gas Sensor Module Digital Standards 0.1ppm Resolution 3.3-5.5V DC

TB200B-ES1 TVOC Gas Sensor Module Digitalization Of Standards

The TVOC Volatile Organic Compounds Gas Sensor Module TB200B is the perfect combination of a state of the art sensing device based on the solid polymer sensor technology with a sophisticated circuit board. The single gas sensor offers in general a simple and easy-to-use solution for your application. As a matter of fact it makes using a gas sensor easy by transforming a small sensor signal into a standardized digital output.

Feature:

1. Detects single gas + temperature + humidity
2. Long lifetime > 5 years
3. Anti-poisoning
4. Fast response time and stable zero return time
5. Easy-to-use calibration
6. UART digital signal output interface (two protocols to choose from, either Standard or Modbus-RTU) 3.3 to 5V DC supply power
7. Low power consumption and sleeping mode (suitable for battery and IoT applications)
8. Suitable for Indoor and Outdoor environment (sensor can work in -40° to +55°C)
9. Independent temperature and humidity digital sensor output
10. RoHS approved environmental design
