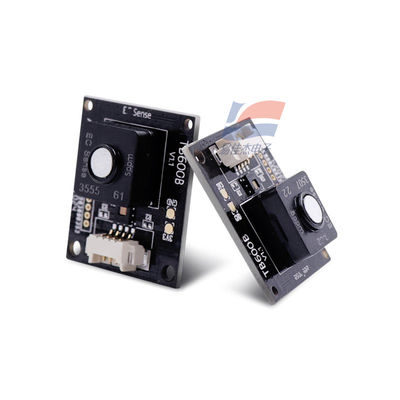

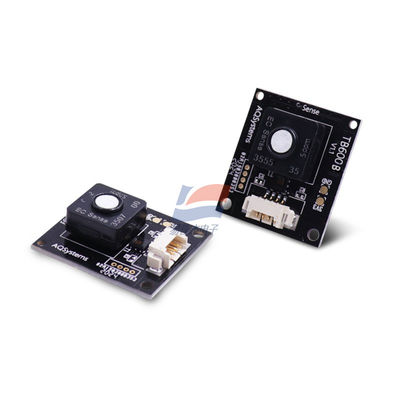

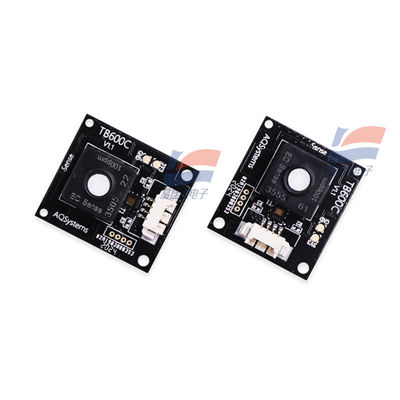

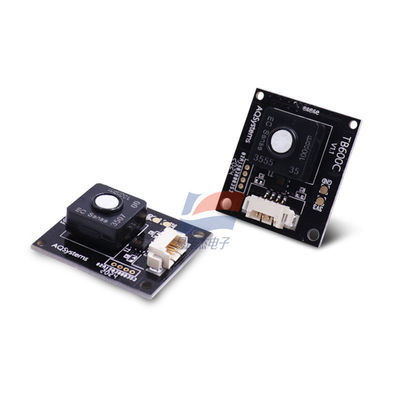

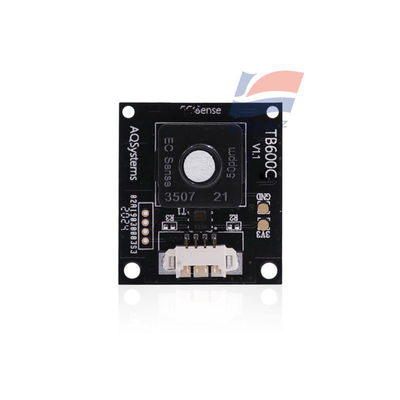

Compact and Lightweight HCHO Formaldehyde Sensor Module TB600C-HCHO-100 with Output UART TTL 3.3V or I2C Digital Signal

TB600C-HCHO-100 Single Gas Sensor Modules HCHO Formaldehyde

The EC Sense TB600C-HCHO-100 Formaldehyde Gas Sensor Module combines state-of-the-art solid polymer sensor technology with a sophisticated circuit board. Therefore, the TB600C Gas Sensor Module provides a simple yet effective solution for gas sensing applications. As a matter of fact, the single gas sensor converts the sensor signals into a standardized digital output, ensuring ease of use and integration.

Feature:

1. Detects single gas + temperature + humidity
2. Long lifetime > 3 years
3. Plug-and-Play
4. Anti-poisoning
5. Fast response and stable zero return time
6. Easy-to-use calibration
7. UART TTL 3.3V or I2C digital signal 3.3 to 5V DC supply power
8. Low power consumption and sleeping mode (suitable for battery and IoT applications)
9. Suitable for Indoor and Outdoor environment
10. Wide operation temperature range of -20° to +55°C
11. Independent temperature and humidity digital sensor output
12. RoHS compliant
