MINIR-20 CO2 Gas Sensor 1.2 Seconds to 1st Reading 30 Seconds Response Time for Wide Range Measurements

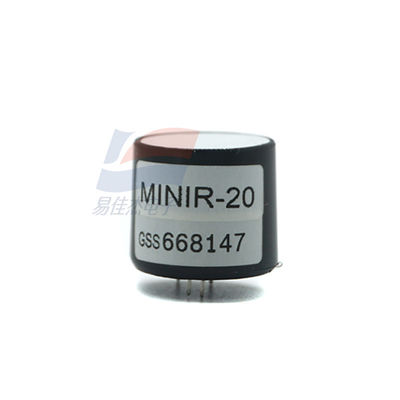

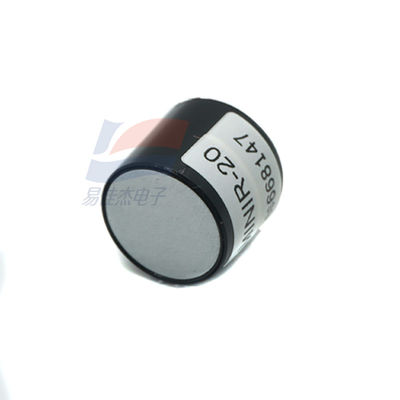

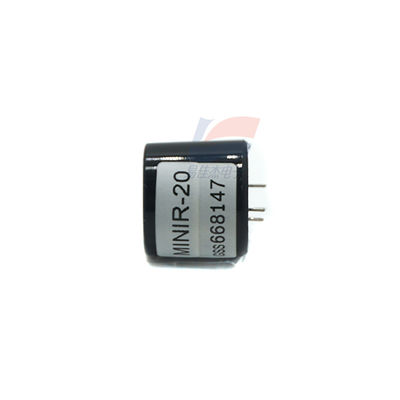

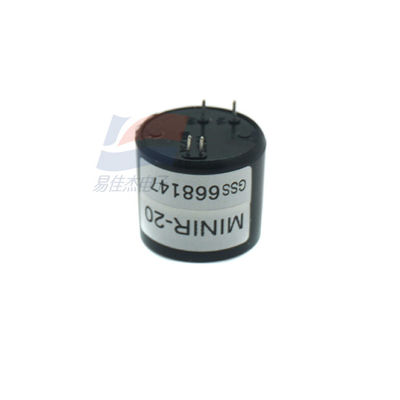

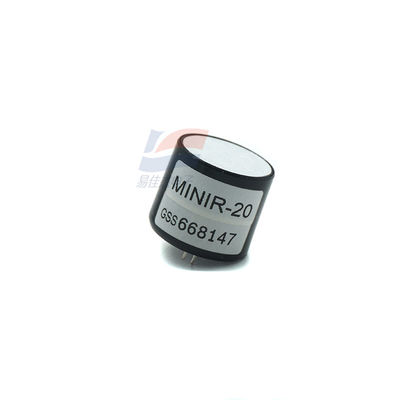

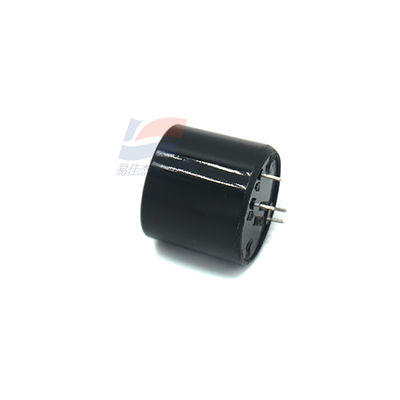

Large Image : MINIR-20 CO2 Gas Sensor 1.2 Seconds to 1st Reading 30 Seconds Response Time for Wide Range Measurements

Product Details:

Place of Origin:	USA
Brand Name:	GSS
Model Number:	MINIR-20

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

MINIR-20 CO2 Gas Sensor 1.2 Seconds to 1st Reading 30 Seconds Response Time for Wide Range Measurements

Description

Measurement Ranges:

0-5%, 0-20%, 0-60%, 0-100%

Accuracy:

0-60%

Time To 1st Reading:

<1.2 Seconds

Response Time:

<30 Seconds

Highlight:

MINIR-20 CO2 Gas Sensor

Wide Range Measurements CO2 Gas Sensor

MINIR-20 Carbon Dioxide Gas CO2 Sensor Wide Range Measurements

Features
•Measures up to 100% CO2concentration
•Low power CO₂ sensor
•Solid-state LED optical technology
•Vibration and shock resistant
•UART interface
•Built-in auto-zero function

Applications
•Industrial Safety
•Incubators
•Transportation
•Refrigeration
•Horticulture and Agriculture

Readings per Second	2
Sample Method	Solid-state LED NDIR Diffusion
Measurement Output	UART
Supply Voltage	3.25V – 5.5V
Power Consumption (typ.)	<3.5mW @ 3.3V
Dimensions and Weight	ø20.9mm x 18.1mm, 4g

MINIR-20 CO2 Gas Sensor 1.2 Seconds to 1st Reading 30 Seconds Response Time for Wide Range Measurements 0
