Product Description:
SM353LT Nanoampere Series All-pole Magnetoresistive 310nA Hall Sensor
Features:
SM353LT all-pole magnetoresistive 310nA Hall sensor with a magnetic sensitivity of 14 to 20G from Honeywell
Nanopower series all-pole magnetoresistive sensors with integrated circuits for all-pole position sensors. SOT-23. The typical value is 7 G, and the value is 11 G (SM351LT); The typical value is 14 G and the value is 20 G (SM353LT); The typical current is 360 nA (SM351LT) and 310 nA (SM353LT).
Magnetosensitive resistor sensor IC (Integrated Circuit)
Honeywell Nanopower series magnemistor (MR) sensor ics are highly sensitive devices, widely suitable for applications with large air gaps, small magnetic fields and low power requirements.
The sensor IC should be installed parallel to the south or North Pole in the direction of the sensor, without the need for additional identification of magnetic poles, which simplifies the installation and potentially saves costs.The average current consumption of these sensor ics is extremely low. The output is a push-pull output without a pull-up resistor, and the operating voltage is as low as 1.65V, which can significantly improve energy efficiency.

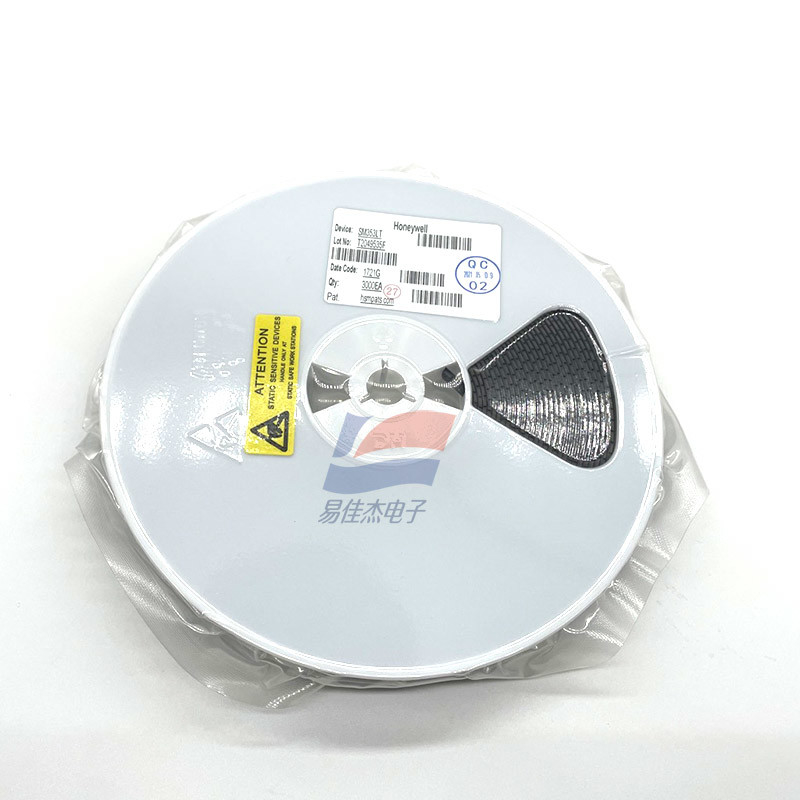

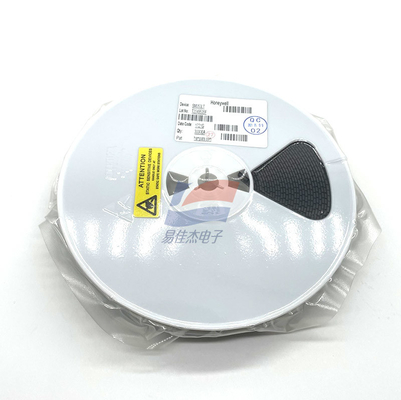

These Nanopower series magnemistor sensor ics adopt the ultra-small SOT-23 surface mount package. The packaging is in the form of tape and reel, with 3,000 pieces per reel, which is suitable for the installation of components using automated sorting and placement.
Key characteristics
High sensitivity: The typical value of SM351LT is 7G, and the value is; The typical value of SM353LT is 14G, and the value is 20G
Nanopower (extremely low power consumption) : The average current of SM351LT is 360nA, and that of SM353LT is 310 nA
Power supply voltage range: 1.65Vdc to 5.5Vdc; Simplified the design
Full-pole induction: The magnet can activate any magnetic pole
Temperature range: -40 ℃ to 85 ℃ [-40 ° F to 185 ° F
Push-pull output: No external pull-up resistor required
Non-chopper stable designRoHS compliance materials: Comply with the requirements of Directive 2002/95/EC
Packaging: SOT-23Potential application fields
Industry
Mobile devices (such as handheld computing devices and scanners)
Water, electricity and gas meters
Building access control Replace the reed switch in battery-powered security systems
Industrial smoke detector
Specifications:
| Sensor type |
Magnetic sensor |
| Sensing range |
±50mT |
| Work Point (BOP |
SM353LT SM351LT |
| Power supply voltage |
30V |
