Product Description:

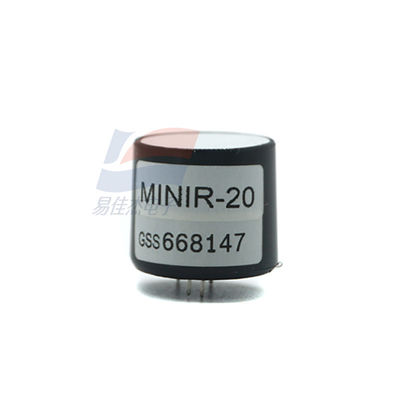

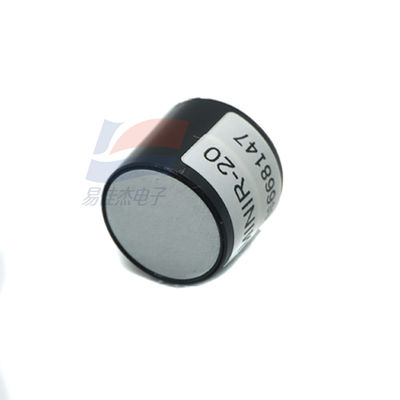

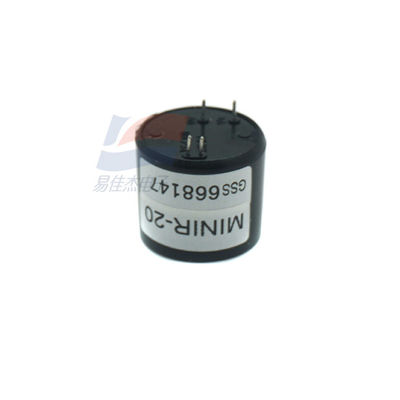

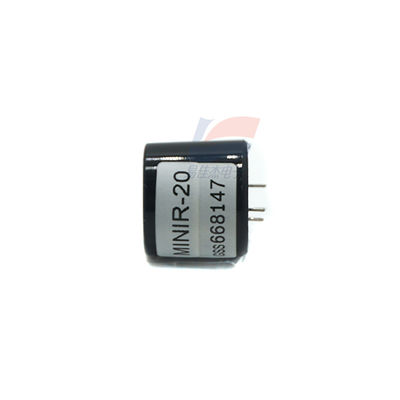

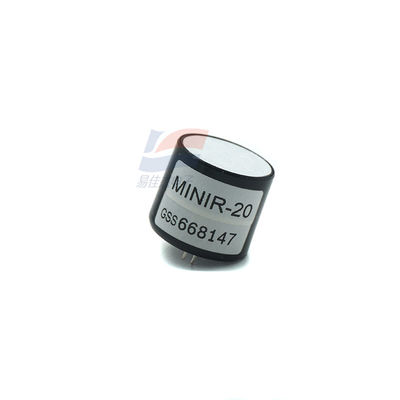

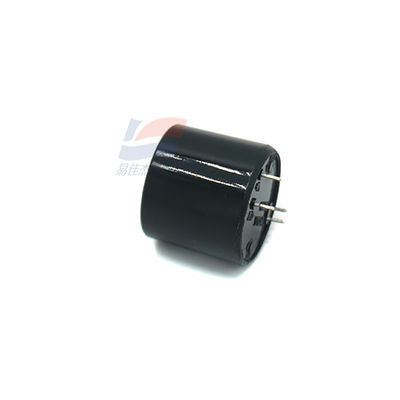

MINIR-20/ExplorIR-M Low-Power And Small-Sized Micro Infrared Carbon Dioxide Sensor (NDIR CO2 Sensor)
Features:
I. Product Description of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M:
The infrared carbon dioxide sensor /CO2 sensor MINIR is a CO2 sensor with low power consumption (3.5mW) and high performance, and is applied in battery-powered products and portable devices
An ideal choice for preparation; Based on IR LED technology and innovative optical path design, the carbon dioxide sensor MINIR becomes a low-power and small-sized NDIR sensor. MINIR is
The third-generation product of GSS Company is the innovator of IR LEDCO2 sensing technology.
Ii. Product Features of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M:
Ultra-low power: 3.5mW
The measurement range is from 0 to 100%
The supply voltage is 3.3v
The peak current is only 33mA
20mm diameter probe type package
Iii. Application of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M
Storage of vegetables and fruits, chemical industry, bacterial incubators, industry and medical care
Iv. Product Parameters of Infrared Carbon Dioxide Sensor /CO2 Sensor MINIR/ExplorIR-M:
The preheating time is less than 10 seconds. The CO2 concentration value is output after 1.2 seconds
Working environment: 0℃ to 50℃ (standard), 0 to 95%RH, no condensation
Storage temperature: -30℃ to +70℃
Sensing method
Non-diffusion infrared light absorption technology
Gold-plated optical path patent technology
Patent technology of all-solid-state light source and detector
Sampling method: Gas diffusion
Measurement range: 0-5%, 0-20%, 0-60%, 0-100%
Accuracy ±70ppm or a maximum value of +/-5%
The nonlinearity is less than 1%FS
The working pressure range is 950mbar to 1050mbar
The response time is 10 seconds to 3 minutes, with readings taken twice per second
Power input
3.25V to 5V (3.3V recommended)
The peak current is 33mA and the average current is less than 1.5mA
Power consumption: 3.5mW
Specifications:
| Response time |
response time |
| Nonlinearity is less than |
1%FS |
| Peak current |
33mA |
| Power consumption |
3.5mW |
