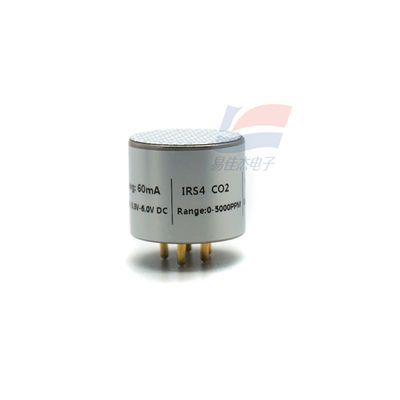

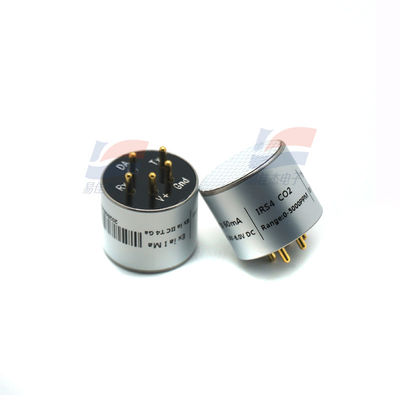

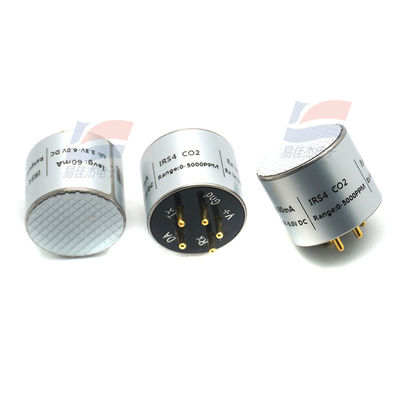

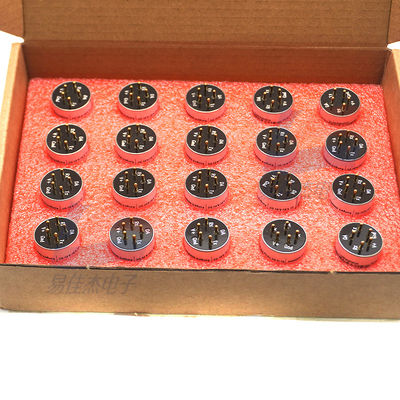

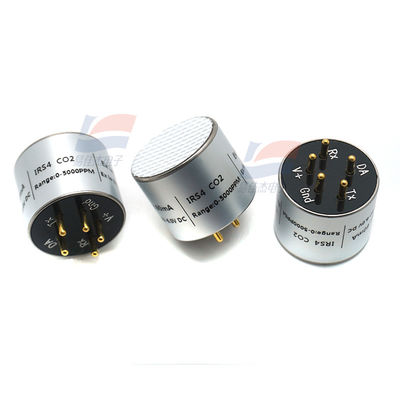

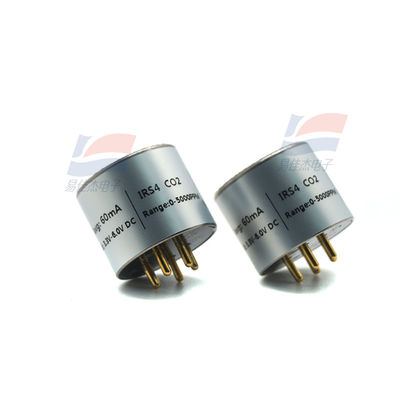

Smart Micro IRS4 CO2 Infrared Carbon Monoxide Gas Sensor with Working Voltage of 3.0V-6.0V DC

Large Image : Smart Micro IRS4 CO2 Infrared Carbon Monoxide Gas Sensor with Working Voltage of 3.0V-6.0V DC

Product Details:

Place of Origin:	China
Brand Name:	IRS
Model Number:	IRS4 CO2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

Smart Micro IRS4 CO2 Infrared Carbon Monoxide Gas Sensor with Working Voltage of 3.0V-6.0V DC

Description

Working Voltage:	3.0V~6.0V DC	Recommended:	Voltage 5.0V DC
Working Current Average:	60mA @5.0V DC	Response Time:	T90<30S
Long-term Zero Drift:	<±1%F.S Per Month
Highlight:	Infrared Carbon Monoxide Gas Sensor , Smart Micro IRS4 Gas Sensor , 3.0V-6.0V DC Gas Sensor

IRS4 CO2 Infrared Carbon Monoxide Gas Sensor Smart Micro

This sensor is an intelligent micro gas sensor designed based on the NDIR principle. It is oxygen-free, anti-poisoning, anti-corrosion to a certain extent, long life, high accuracy, and stable performance. It can be used in environmental monitoring, medical, bioengineering, agricultural meteorological stations, cold chain transportation, mushroom houses, gas extraction pipeline monitoring, chemical industry, petroleum, metallurgy, oil depots, liquefied gas stations, painting operations, gas transmission and distribution, etc.

Working temperature	-40℃-+70℃
Storage temperature	-40℃-+85℃
Humidity range	0-95% RH
Digital output	TTL level 0 or 2.5V

Smart Micro IRS4 CO2 Infrared Carbon Monoxide Gas Sensor with Working Voltage of 3.0V-6.0V DC 0
