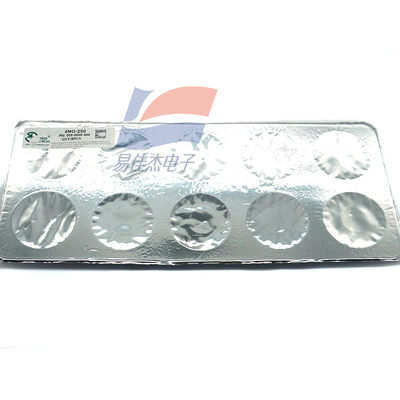

YJJ 4NO-250 CLE-0522-400 Electrochemical NO Sensor for Consistent Gas Concentration Measurement

Product Description:

4NO-250 CLE-0522-400 Electrochemical Nitric Oxide (NO) Sensor Is Used To Measure Gas Concentration

Features:

Product Description

This product is used to measure the concentration of nitric oxide gas and can replace the standard four-series nitric oxide electrochemical sensor with pins.

Performance parameters

Range: 0-250 ppm

The maximum load is 1000 ppm

Sensitivity (20℃) : 0.4 ± 0.1 μA/ppm

The response time (T90) is ≤ 30 seconds

Baseline (20℃) < ±1.4 μA

Baseline drift (-20℃ to 50℃) < 10 ppm

Resolution: 0.5 ppm

Linearity Linear

Bias voltage +300 mV

Working environment

Temperature range: -20℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current is less than 1 mA when there is 1000 PPM of nitric oxide

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 5 grams

No directionality
