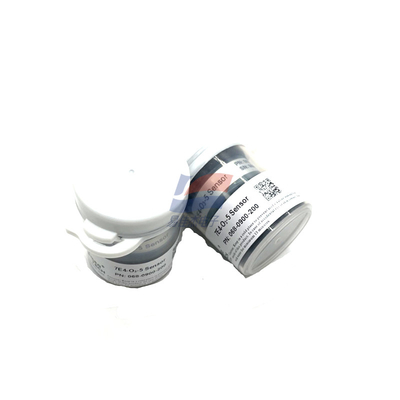

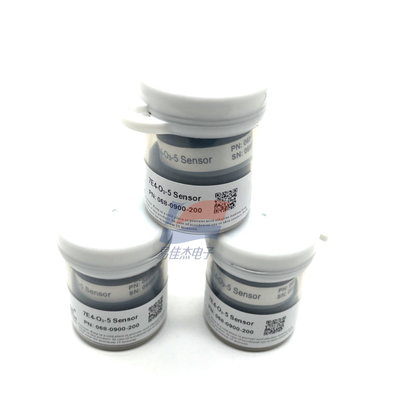

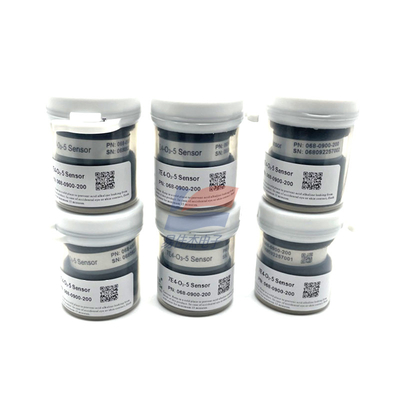

YJJ 7E4-O3-5 068-0900-200 Electrochemical Ozone Sensor Is Used In O3 Detectors

Product Description:

7E4-O3-5 068-0900-200 Electrochemical Ozone Sensor Is Used In O3 Detectors

Features:

Product Description

This product is used to measure the concentration of ozone gas and can replace the standard seven-series ozone electrochemical sensor with pins.

Performance parameters

Range: 0-5ppm

Maximum load: 20 ppm

Sensitivity (20℃) : -2.00 ± 0.95 μA/ppm

The response time (T90) is ≤ 45 seconds

Baseline (20℃) < ±0.2 μA

Baseline drift (-40℃ to 50℃) < 0.05 ppm

Resolution: 0.02 ppm

Linearity Linear

Bias voltage: 0 mV

Working environment

Temperature range: -40℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current at 10ppm ozone is less than 0.2 mA

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance
