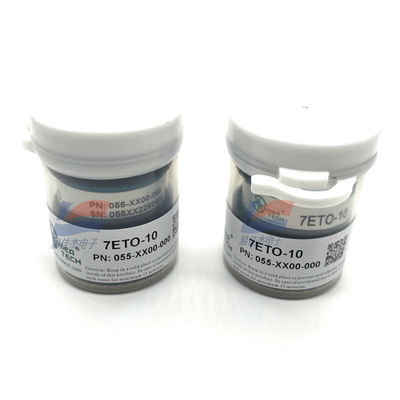

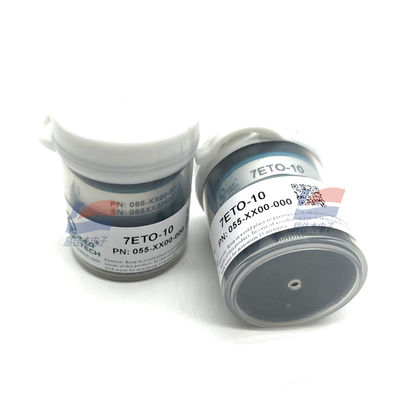

YJJ 7ETO-10 055-XX00-000 7 Series Electrochemical Ethylene Oxide Sensor Is Used In Field Of Coal Mine Chemical Industry

Product Description:

7ETO-10 055-XX00-000 7 Series Electrochemical Ethylene Oxide Sensor Is Used In Field Of Coal Mine Chemical Industry

Features:

Product Description

This product is used to measure the concentration of ethylene oxide gas and can replace the standard seven series ethylene oxide electrochemical sensor with pins.

Performance parameters

The range is 0 to 10 ppm

Maximum load: 50 ppm

Sensitivity (20℃) : 2.25 ± 0.65 μA/ppm

The response time (T90) is ≤ 120 seconds

Baseline (20℃) : -0.2 to 2.5 μA

Baseline drift (-20℃ to 50℃) < 2 ppm

Resolution 0.05 ppm

Linearity Linear

Bias voltage +300 mV

Working environment

Temperature range: -20℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current is less than 0.5 mA when there is 100ppm of ethylene oxide

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance
