CGM6812-B00 Hydrogen Gas Sensor Module Gas Leak Detection In Fuel Cell Systems

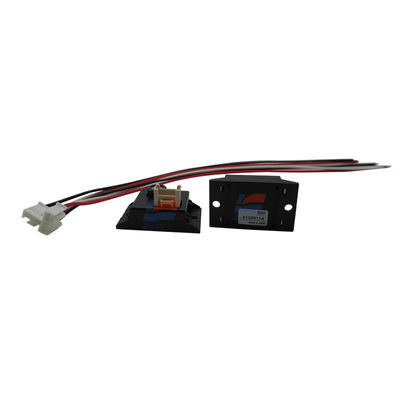

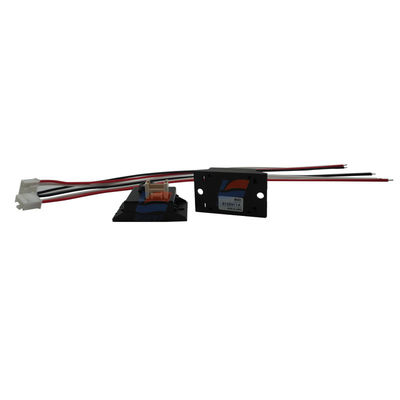

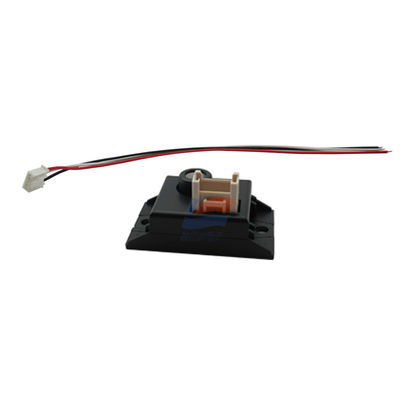

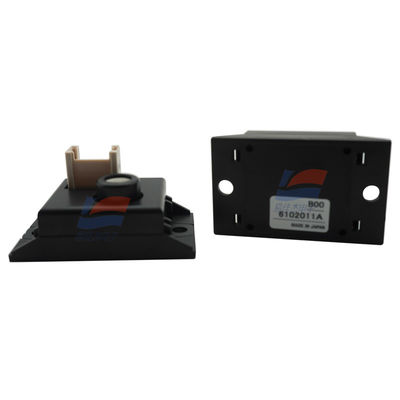

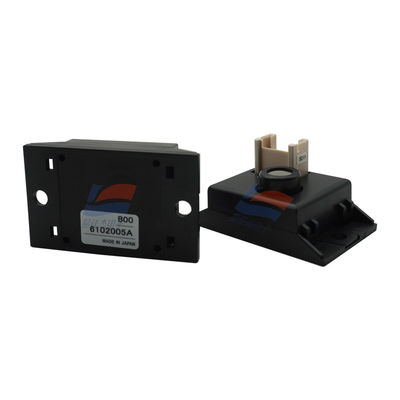

Large Image : CGM6812-B00 Hydrogen Gas Sensor Module Gas Leak Detection In Fuel Cell Systems

Product Details:

Place of Origin:	China
Brand Name:	Figaro
Model Number:	CGM6812-B00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

CGM6812-B00 Hydrogen Gas Sensor Module Gas Leak Detection In Fuel Cell Systems

Description

Product Name:

Combustible Gas Sensor Module

Model No.:

CGM6812-B00

Detection Range:

0 ~ 14,000ppm

Factory Setting Output:

Vconc In Air

Highlight:

Hydrogen Gas Sensor Module

CGM6812-B00 Sensor Module

Gas Leak Detection CGM6812-B00

CGM6812-B00 Hydrogen Gas Sensor Module Gas Leak Detection In Fuel Cell Systems

Features:
*Linear analog output proportional to gas concentration
* Maintenance free
* Compact size
* Meets RoHS requirements

Target gases: Hydrogen, Methane, Butane, Propane

Applications:
* Gas leak detection in fuel cell systems
* Hydrogen & combustible gas leak detectors
* Safety measures for lithium-ion batteries

The CGM6812-B00* combustible gas sensor module is a new unit which utilizes TGS6812, Figaro's catalytic pellistor type gas sensor which features
durability and stability. This module provides analog output voltage proportional to hydrogen gas concentration. CGM6812-B00 has conformal coatings for moisture-proofing and electrical insulation purposes, and is also capable of detecting sensor wire breakag

Circuit conditions	5.0±0.2V DC
Preheating period prior to test	≥2 weeks (recommendation)
Response time	≤30 seconds
Warm-up time	Sec 2-3
Operating conditions	-10˚~+60˚C
Storage conditions	-10˚~+60˚C
Input voltage (VIN)	5.0±0.2V DC
Power consumption	≤1.5W
Dimensions	50 x 30 x 25.3mm
Weight	15g or less

CGM6812-B00 Hydrogen Gas Sensor Module Gas Leak Detection In Fuel Cell Systems 0
