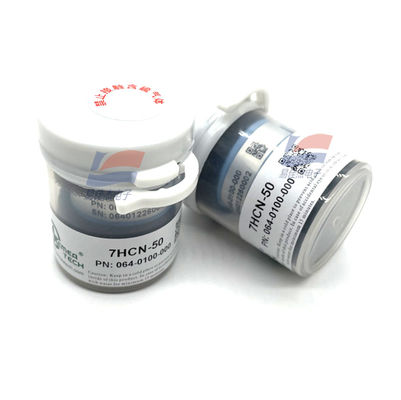

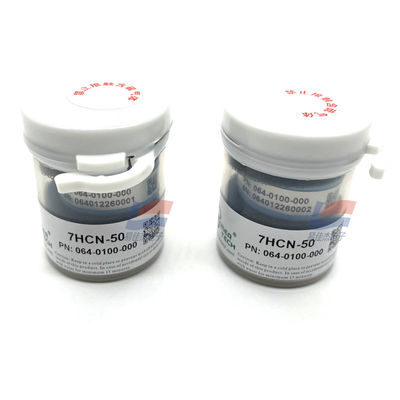

YJJ 7HCN-50 064-0100-000 Electrochemical Hydrogen Cyanide Sensor Is Used For Measurement And Detection Of HCN Concentration

Product Description:

7HCN-50 064-0100-000 Electrochemical Hydrogen Cyanide Sensor Is Used For Measurement And Detection Of HCN Concentration

Features:

Product Description

This product is used to measure the concentration of hydrogen cyanide gas and can replace the standard seven series hydrogen cyanide electrochemical sensor with pins.

Performance parameters

The range is 0 to 50 ppm

Maximum load: 50 ppm

Sensitivity (20℃) : 0.055 ± 0.015 μA/ppm

The response time (T90) is ≤ 105 seconds

Baseline (20℃) < ±0.2 μA

Baseline drift (-20℃ to 40℃) < 1.5 ppm

(-20℃ to 50℃) < 3.5 ppm

Resolution: 0.2 ppm

Linearity Linear

Bias voltage: 0 mV

Working environment

Temperature range: -20℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current is less than 0.2 mA at 50ppm of hydrogen cyanide

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance
