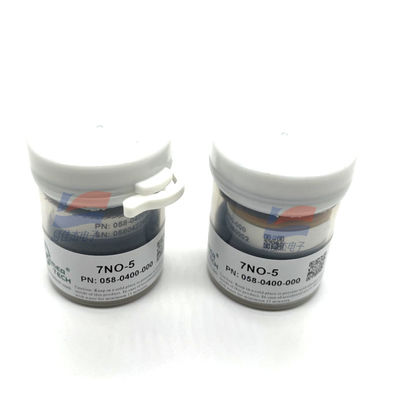

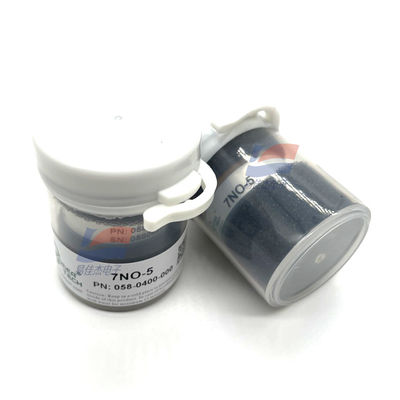

YJJ 7NO-5 058-0400-000 7 Series Electrochemical Nitric Oxide Sensor Is Used For Detection Of NO Gas Concentration

Product Description:

7NO-5 058-0400-000 7 Series Electrochemical Nitric Oxide Sensor Is Used For Detection Of NO Gas Concentration

Features:

Product Description

This product features a zero-bias design. Compared with other nitric oxide sensors on the market, it innovatively eliminates the sensor preheating time and simplifies the design of the gas monitor, offering a more stable baseline and higher resolution.

Performance parameters

The range is 0 to 5 ppm

Maximum load: 20 ppm

Sensitivity (20℃) : 1.5 ± 0.3 μA/ppm

The response time (T90) is ≤ 30 seconds

Baseline (20℃) < ±0.2 μA

Baseline drift (-20℃ to 50℃) ≤ 0.3 ppm

Resolution: 0.005 ppm

Linearity Linear

Bias voltage: 0 mV

Working environment

Temperature range: -20℃ to 50℃

The pressure range is 1 ± 0.1 standard atmosphere

Humidity range: 15% to 90%RH (no condensation)

Lifespan

Long-term stability < 2% signal value per month

Storage temperature: 10℃ to 30℃

Service life: 2 years (in the air)

Storage time: 6 months (in dedicated packaging boxes)

The warranty period is 12 months

Intrinsically safe data

The maximum current is less than 1 mA when there is 20ppm of nitric oxide

The maximum open-circuit voltage is 1.3V

The maximum short-circuit current is less than 1.0 A

Physical properties

Shell material: ABS

Weight: 8 grams

RoHS compliance
