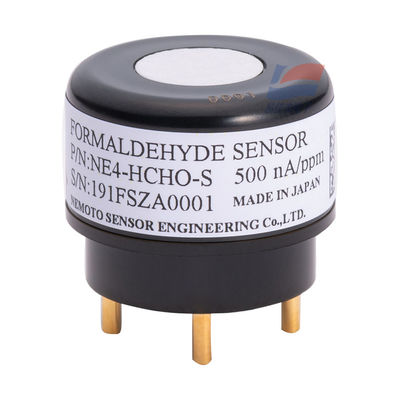

NE4-HCHO-S Three-electrode Industrial-grade Formaldehyde Sensor with 0.2 PPM Zero Drift and 500±150 nA/PPM Sensitivity

          NE4-HCHO-S Electrochemical Three-electrode System Industrial-grade Formaldehyde Sensor

I. Product Applications:

1. Indoor Air Quality Monitoring:
   • Used for formaldehyde concentration detection in homes, offices, hotels, etc., to ensure indoor environmental safety.
   • Compatible with air purifiers and fresh air systems to achieve real-time feedback and automatic adjustment of formaldehyde concentration.
2. Industrial Process Control:
   • Monitoring formaldehyde gas leakage in chemical production to prevent safety accidents.
   • Detection of formaldehyde emission in building materials, coatings, and other industries (e.g., environmental performance testing of boards and furniture).
3. Environmental Protection & Scientific Research:
   • Formaldehyde pollution early warning in environmental monitoring stations.
   • Data collection for formaldehyde-related experiments in universities and research institutions.
4. Medical & Health Scenarios:
   • Safety monitoring of formaldehyde-sensitive environments such as hospital wards and laboratories.
   • Effect evaluation in formaldehyde treatment services (e.g., concentration detection after formaldehyde removal construction).

II. Product Features:

1. High Sensitivity & Accuracy:
   • Sensitivity reaches 500±150nA/PPM, capable of detecting formaldehyde concentrations as low as 0.01PPM to meet indoor environmental safety standards.
   • Zero drift <0.2PPM, repeatability ≤±5%, ensuring strong long-term stability.
2. Advantages of Electrochemical Principle:
   • Three-electrode design (working electrode, counter electrode, reference electrode) with strong anti-interference ability, reducing cross-effects from other gases (e.g., ethanol, benzene).
   • No heating element required, low power consumption, suitable for battery-powered devices (e.g., portable detectors).
3. Wide Operating Range & Environmental Adaptability:
   • Stable operation at -20℃~50℃ and 15%~90%RH humidity, adapting to different climatic conditions.
   • Tolerant to atmospheric pressure fluctuations (0.9~1.1atm), suitable for areas at different altitudes.
4. Easy Integration & Low Cost:
   • 0mV bias voltage, recommended 10Ω load resistance, simple circuit design compatible with various MCUs (e.g., Arduino, STM32).
   • Industrial-grade packaging with high cost-effectiveness, suitable for mass application in consumer electronics and monitoring equipment.
5. Rapid Response & Reliability:
   • Response time ≤120s, providing real-time feedback on formaldehyde concentration changes to meet emergency monitoring needs.
   • Maximum overload 50PPM, recoverable after short-term high-concentration exposure, extending service life.
