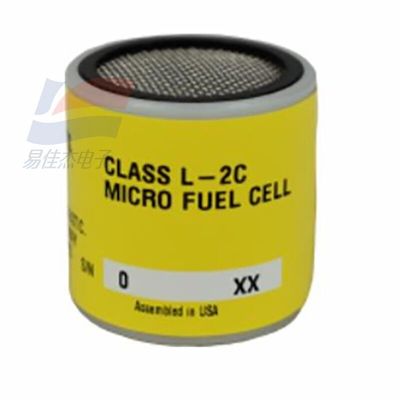

YJJ L-2C C06689-L2C Oxygen Sensor Oxygen Analyzer CLASS L-2C Oxygen Battery Fuel Cell

Product Description:

L-2C C06689-L2C Oxygen Sensor Oxygen Analyzer CLASS L-2C Oxygen Battery Fuel Cell

Features:

Oxygen analyzer CLASS L-2C oxygen sensor

The Teledyne oxygen sensor is a trace oxygen fuel cell, which is designed and manufactured by TAI Company. It is a sealed and disposable electrochemical sensor.

The reaction components of a microfuel cell include: a cathode, an anode, and a water-soluble KOH electrolyte soaked in them, with a concentration of 15%. The battery converts the energy of chemical reactions into the current of the external electronic circuit. Its principle is similar to that of a battery. However, there is a significant difference in the working principle between micro-fuel cells and storage batteries: In storage batteries, all the reactants are within the battery. In a microfuel cell, one of the reactants (oxygen) comes from outside the device, that is, a sample gas that is continuously analyzed. Therefore, it can be said that the micro-fuel cell is a hybrid of a storage battery and a true fuel cell. In a true fuel cell, all the reactants are stored outside the device.

TELEDYNE L-2C oxygen sensor CLASS L-2C Oxygen sensor C06689-L2C, C6689-L2C. The Teledyne oxygen sensor is a MICRO FUEL CELL, also known as an oxygen analyzer probe. C06689-A2C, C06689-A2CI, C06689-A3, C06689-A5, C06689-B1, C06689-B2C, C06689-B2CXL, C06689-B3, C06689-L2C, C06689-A2CL C06689-Z2C, C06689-E2, C057283-E2, B7185-INSTA TRACE, D73016-INSTA TRACE C02
Oxygen sensor B-2C, oxygen battery B-2C, fuel cell B-2C
L-2C trace oxygen battery, L-2C oxygen sensor
Oxygen sensor B-2CXL, oxygen battery B-2CXL, fuel cell B-2CXL
Oxygen sensor B-1, oxygen battery B-1, fuel cell B-1
Oxygen battery B-3, oxygen sensor B-3, fuel cell B-3
Oxygen battery A-2C, oxygen sensor A-2C, fuel cell A-2C

Specifications:
