CSNJ481 Closed-loop Current Sensors Are Based On Magnetoresistive Effect Or Hall Effect

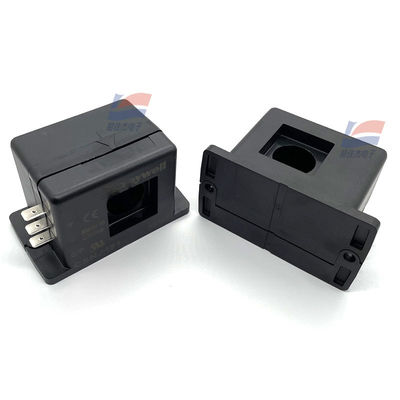

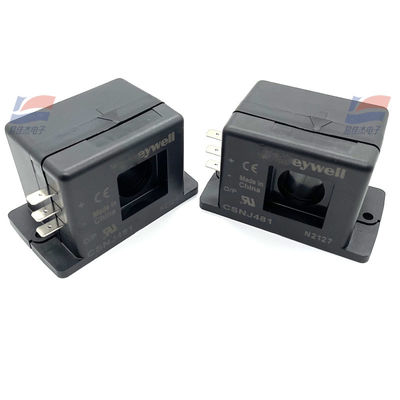

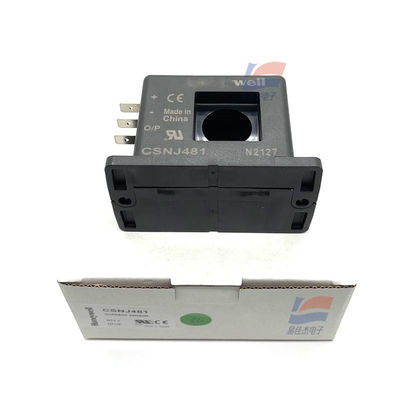

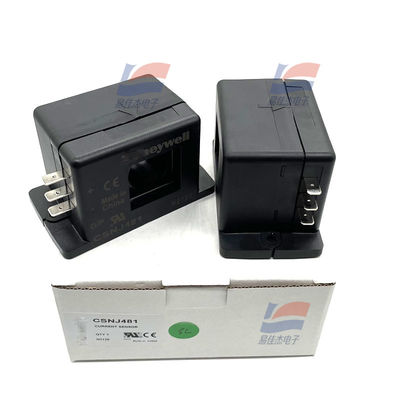

                                                         CSNJ481 Closed-loop Current Sensor

Electrical Parameters:

• Rated Current: 300A
• Sensing Current Range: ±600A
• Power Supply Voltage: 12 - 18V DC
• Output Type: Ratio, Current

Performance Parameters:

• Accuracy: ±0.5%
• Response Time: 0.5μs
• Bandwidth: DC - 150kHz

Temperature Parameters:

• Operating Temperature Range: -40°C to 85°C

Mechanical & Packaging Parameters:

• Mounting Type: Through Hole
• Package/Case: Module, Single Pass - Through
• Number of Pins: 3
• Package Material: Plastic/Epoxy

Additional Parameters:

• RoHS Compliance: Yes
• REACH SVHC: No SVHC Substances
