CO-AM CO Gas Carbon Monoxide Sensors Industry Standard Size

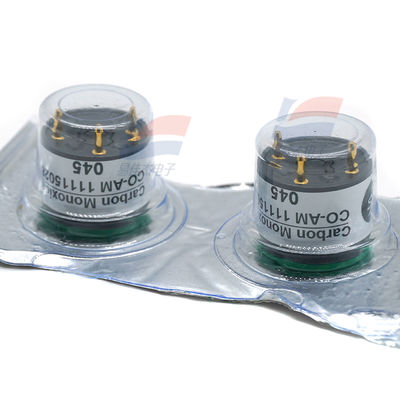

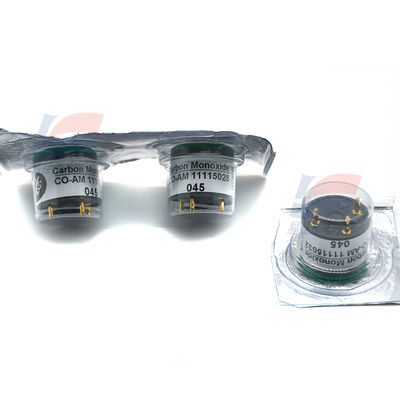

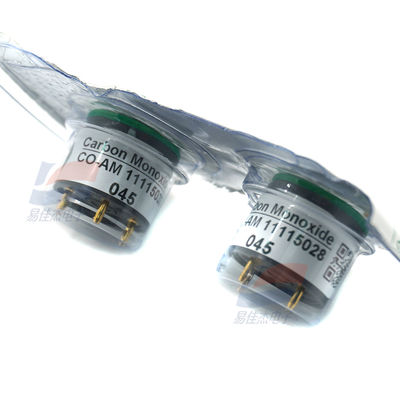

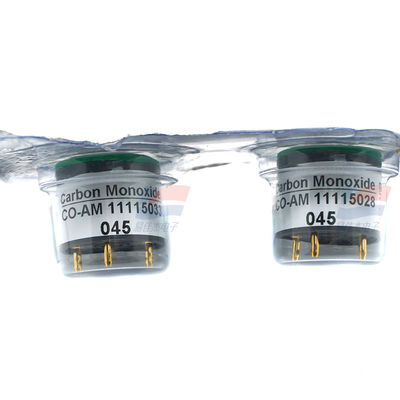

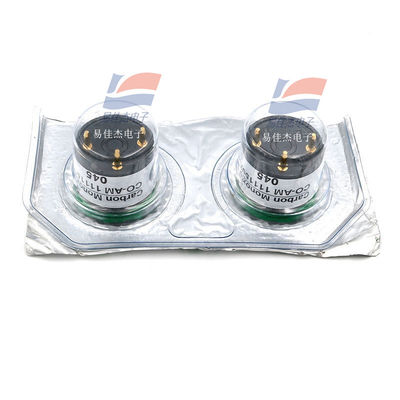

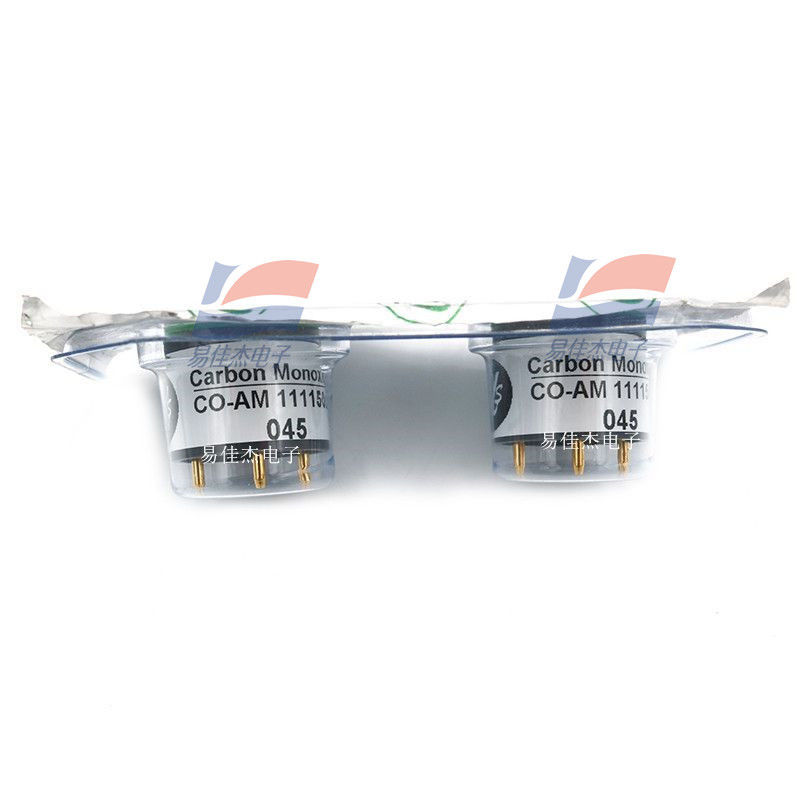

Large Image : CO-AM CO Gas Carbon Monoxide Sensors Industry Standard Size

Product Details:

Place of Origin:	UK
Brand Name:	Alphasense
Model Number:	CO-AM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/Month

Contact Now

CO-AM CO Gas Carbon Monoxide Sensors Industry Standard Size

Description

Sensitivity:

55 To 90

Response Time T90s:

< 25

Zero Current:

-4 To +2

Resolution:

< 0.5

Highlight:

CO gas sensor industry standard

carbon monoxide sensor CO-AM

standard size CO gas detector

CO-AM CO Gas Carbon Monoxide Sensors Industry Standard Size

CO-AM Carbon Monoxide Sensor sizes: 20mm diameter, the industry standard size for portable gas detectors

The Alphasense family of CO sensors have proven themselves in the field with long term stability and reliable operation, well beyond the two-year warranty, using our patented electrode technology.

• Range: 5,000 ppm CO limit of performance warranty
• Sensitivity: 55 to 90 nAppm in 400ppm CO
• Response time t90: < 25 (s) from zero to 400ppm CO
• Resolution: < 0.5 RMS noise (ppm equivalent)
• Temperature range: -30 to 50°C
• Pressure range: 80 to 120kPa
• Humidity range: 15 to 90% rh continuous
• Weight: < 6 g

Datasheet:

Zero drift	< 0.2ppm
Sensitivity drift	< 8%
Operating life	> 24
Sensitivity @ -20°C	63 to 88
Sensitivity @ 50°C	102 to 115
Zero @ -20°C	< ± 3
Zero @ 50°C	< ± 8

CO-AM CO Gas Carbon Monoxide Sensors Industry Standard Size 0
