L07P015S05 Open-loop Hall Effect Current Sensor For Solar Inverters Wind Energy Inverters

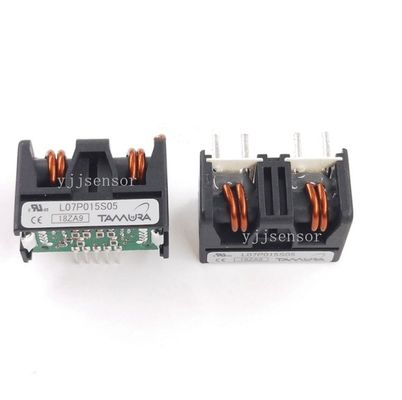

Large Image : L07P015S05 Open-loop Hall Effect Current Sensor For Solar Inverters Wind Energy Inverters

Product Details:

Place of Origin:	Japan
Model Number:	L07P015S05

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Standard packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

L07P015S05 Open-loop Hall Effect Current Sensor For Solar Inverters Wind Energy Inverters

Description

Rated Primary Current (Ip):	15A RMS (continuous)	Sensing Range:	±30A
Supply Voltage (Vcc):	+5V DC (±5%)	Quiescent Supply Current:	≤20mA
Offset Voltage (Vof):	Vcc/2 (typ. 2.5V ±0.04V)	Sensitivity:	1.25V At 15A (83.3mV/A)
Highlight:	Open-loop Hall Effect current sensor , Solar inverter current sensor , Wind energy inverter current sensor

L07P015S05 Open-loop Hall Effect Current Sensor For Solar Inverters Wind Energy Inverters

Application Fields:

Suitable for low-power sections of general frequency converters, and can be used in solar inverters, wind energy inverters, motor drives, UPS systems, and other equipment for AC/DC current and pulse current detection.

Key Features:

Dual operational sensor with compact size and low cost.
PCB-mount design, occupying only 25×16mm of PCB area.
Built-in coil and permalloy magnetic core.

Product Type	Open-Loop Hall Effect Current Sensor
Mounting Style	PCB Mounting (25mm × 16mm footprint)
Core Material	Permalloy
Rated Primary Current (Ip)	15A RMS (continuous)
Sensing Range	±30A
Supply Voltage (Vcc)	+5V DC (±5%)
Quiescent Supply Current	≤20mA
Output Type	Analog Voltage (ratiometric to supply voltage)
Offset Voltage (Vof)	Vcc/2 (typ. 2.5V ±0.04V)
Sensitivity	1.25V at 15A (83.3mV/A

L07P015S05 Open-loop Hall Effect Current Sensor For Solar Inverters Wind Energy Inverters 0

Tag:

Contact Person: Miss. Xu

Tel: 86+13352990255
