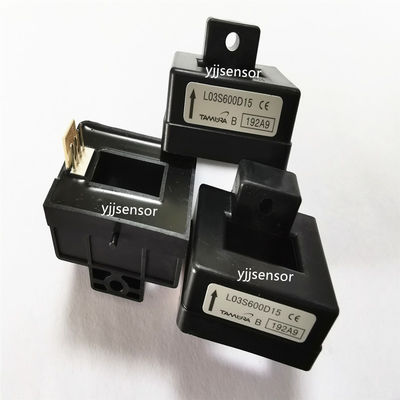

L03S600D15 Open-loop Hall Effect Current Sensor For Wind Power Inverters Converters

                           L03S600D15 Open-loop Hall Effect Current Sensor For Wind Power Inverters Converters

Features:

• Wide Current Measurement Range: The rated current ranges from 50A to 600A, and the saturation current reaches 150A to 700A, meeting the measurement requirements of various current intensities and adapting to different power-grade circuits.
• High-Precision Output: The output voltage is 4V±0.040V, and the bias voltage is 0V±0.030V (except for the 50A specification), which can accurately reflect the magnitude of the measured current and provide reliable data for subsequent measurement, control, and protection.
• Excellent Insulation Performance: The insulation voltage is AC 2.5kV, 50Hz, 1min, which can effectively isolate high-voltage circuits, ensure the safety of equipment and personnel, and reduce the risk of electrical failures and leakage.
• Open-Loop Structure: As an electromagnetic proportional (open-loop) current sensor, it features a relatively simple structure and low cost. Meanwhile, it has a fast response speed to promptly reflect current changes.
