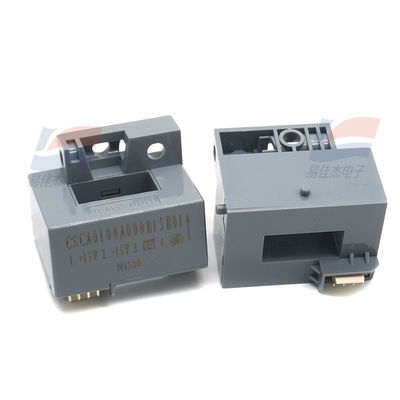

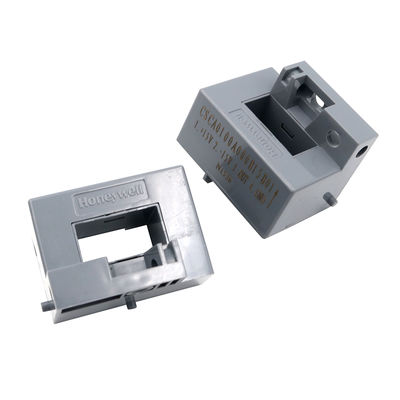

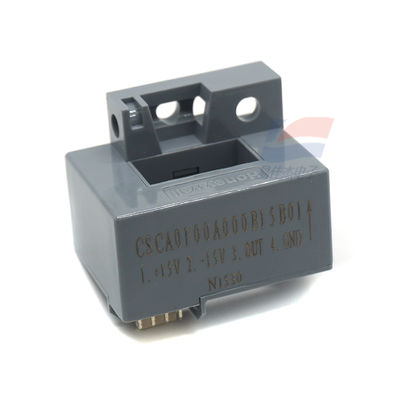

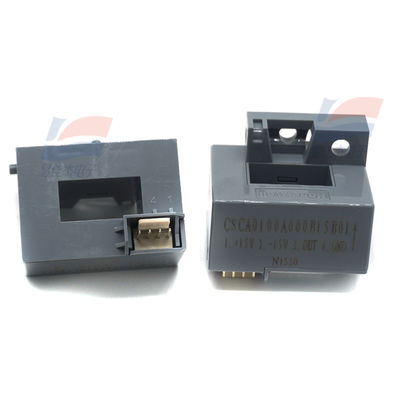

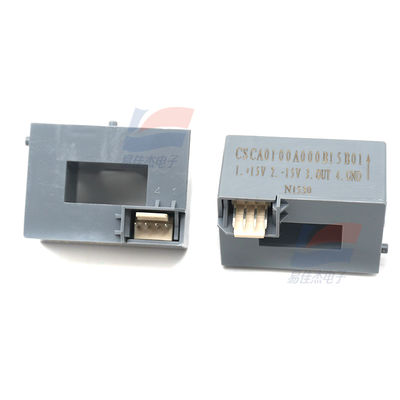

YJJ CSCA0100A000B15B01 Closed-loop Current Sensor Is Used In Variable Frequency Speed Regulators

Product Description:

CSCA0100A000B15B01 Closed-loop Current Sensor Is Used In Variable Frequency Speed Regulators

Features:

CSCA-A series of inductive analog current sensors are based on the Hall effect technology. The output voltage generated by the Hall Effect Device (HED) is linearly related to the amplitude and phase of the applied magnetic field. The current flowing through the conductor body generates a rotating magnetic field around the conductor. This magnetic field is collected by a magnetic sensitive material core and concentrated in the gap of the core, where the HED is located. Therefore, the output of the HED is proportional to the amplitude and phase of the primary current. The output of the HED is adjusted for gain and offset calibration so that the CSCA-A series sensors can provide the pre-defined relationship between the output sensitivity and the primary current.

Product Type: Industrial Current Sensor

Current Rating: 100 A

Sensor Type: Open Loop

Response Time: 3 us to 7 us

Accuracy: 2 %

Frequency Range: 0 Hz to 50 kHz

Trademark: Honeywell

Core Size: 20.5 mm X 10.5 mm

Height: 29 mm

Length: 40 mm

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 10 C

Operating Power Supply Voltage: 15 V

Product Type: Industrial Current Sensors

Series: CSCA 25

Subcategory: Sensors

Type: Inductive Analog Current Sensor

Width: 35 mm
