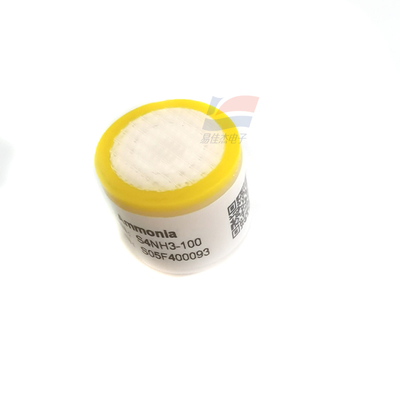

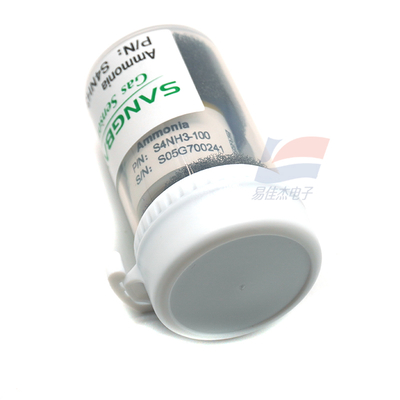

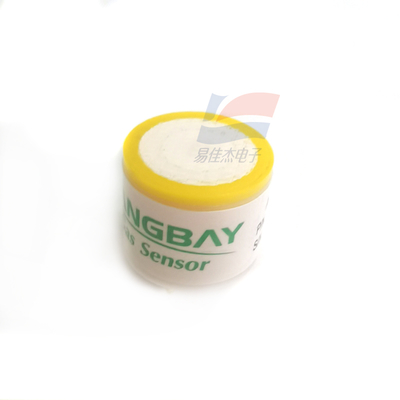

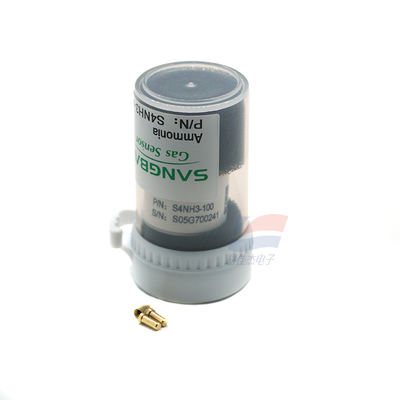

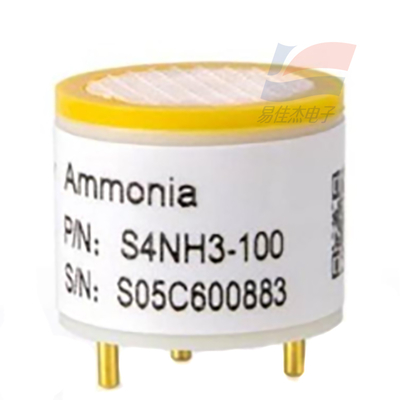

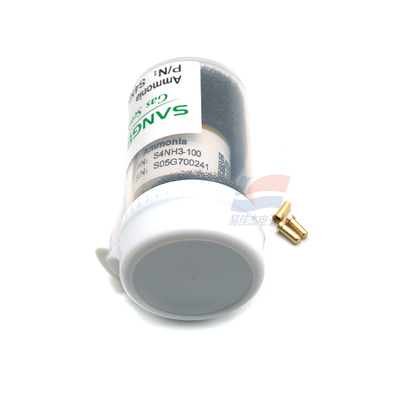

S4NH3-100 Ammonia Gas Sensor Electrochemical Three electrodes High Precision And long Service Life

Large Image : S4NH3-100 Ammonia Gas Sensor Electrochemical Three electrodes High Precision And long Service Life

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	S4NH3-100

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

S4NH3-100 Ammonia Gas Sensor Electrochemical Three electrodes High Precision And long Service Life

Description

Detection Principle:

Electrochemical Three Electrodes

Detection Gas:

NH3

Detection Range:

0-100PPM

Maximum Load Concentration:

200PPM

Highlight:

ammonia gas sensor electrochemical

high precision gas sensor

long life ammonia sensor

S4NH3-100 Ammonia Gas Sensor Electrochemical Three electrodes High Precision And long Service Life

Product Overview
S4-NH3 sensor is a constant potential electrolytic sensor. The ammonia gas and oxygen will undergo corresponding oxidation-reduction reaction on the working electrode and the counter electrode respectively and release charge to form current. The generated current is proportional to the ammonia concentration. The ammonia concentration can be determined by measuring the current.

High precision and long service life
Fast response and zero return
Low power consumption and high sensitivity
Wide linear range, strong anti-interference ability
Excellent repeatability and stability

Application Field
Ammonia alarm
Ammonia gas detection at industrial site
Ammonia gas detection in animal husbandry
Smart municipal ammonia detection
Ammonia detection in atmospheric environment

Maximum load concentration	200PPM
Output signal	160±40nA/PPM
Zero drift	0~4PPM
Resolution	1PPM
Response time	<90s
Bias voltage	0
Load resistance	5~30Ω
Working Temperature	-30℃-50℃
Working Humidity	15%RH to 90%RH(no condensation)
Repeatability	＜±2% output signal
Long-term stability	＜2% signal/month
Work pressure	90 to 110 kPa
Shelf life	12 months after delivery
Service life	2 years

S4NH3-100 Ammonia Gas Sensor Electrochemical Three electrodes High Precision And long Service Life 0
