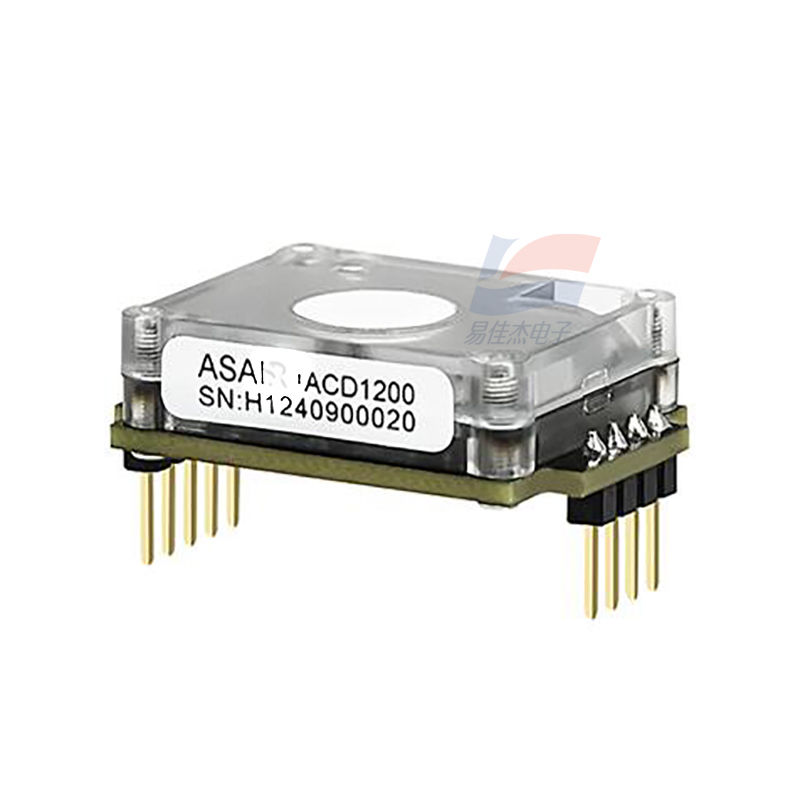

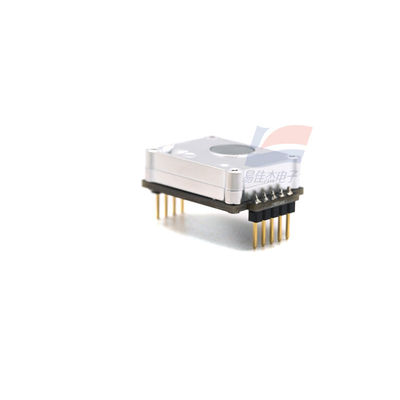

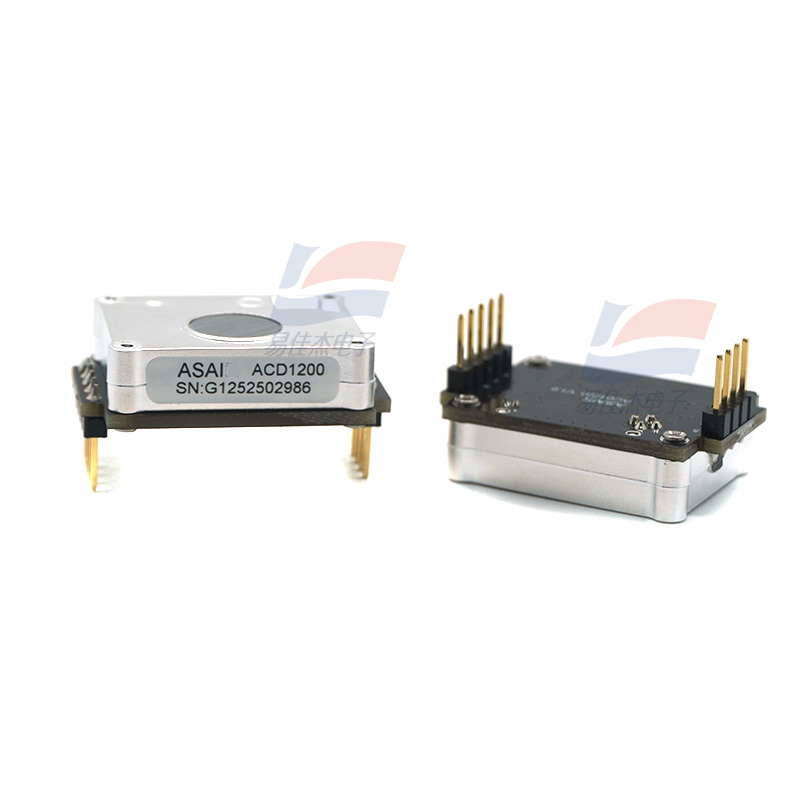

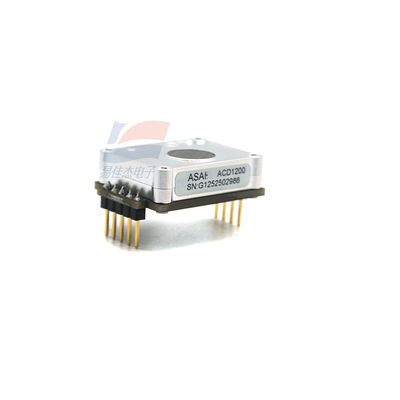

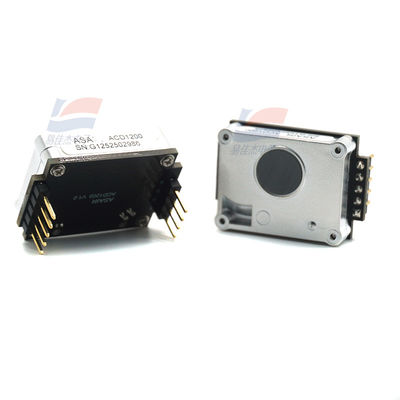

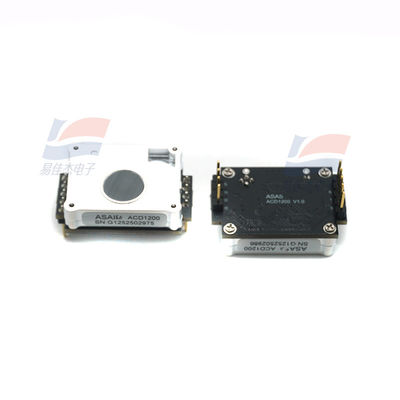

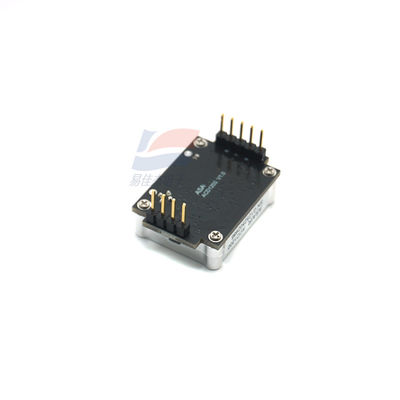

ACD1200 Infrared Carbon Dioxide CO2 Gas Sensor Responsive Fast Recovery Time

Large Image : ACD1200 Infrared Carbon Dioxide CO2 Gas Sensor Responsive Fast Recovery Time

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	ACD1200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

ACD1200 Infrared Carbon Dioxide CO2 Gas Sensor Responsive Fast Recovery Time

Description

Working Voltage:

4.75～5.25V

Working Current Average Current:

<45mA

Typical Power:

100mW @5V

Measurement Range:

400～5000ppm

Highlight:

infrared CO2 gas sensor

fast recovery CO2 sensor

responsive CO2 gas detector

ACD1200 Infrared Carbon Dioxide CO2 Gas Sensor Responsive Fast Recovery Time

Infrared CO2 sensor
• Excellent long-term stability
• Good selectivity
• No oxygen dependence
• Standard digital output
• Fast response
• Fast recovery time
• Strong anti-interference ability

ACD1200 uses the non-dispersive infrared (NDIR) principle to detect the concentration of carbon dioxide in the air. ACD1200 has the advantages of good selectivity, no oxygen dependence, long life, etc. It has a digital interface output for easy use. ACD1200 is a high-performance sensor that integrates infrared absorption gas detection technology, precision optical path and high-precision signal detection circuit.

Accuracy	± (50ppm + 5% reading)
Warm-up time	120s
Operating conditions	0℃～50℃; 0～95%RH (non-condensing)
Storage conditions	-20℃～60℃; 0～95%RH (non-condensing)
Data refresh frequency	2s
Service life	>10 years

ACD1200 Infrared Carbon Dioxide CO2 Gas Sensor Responsive Fast Recovery Time 0
