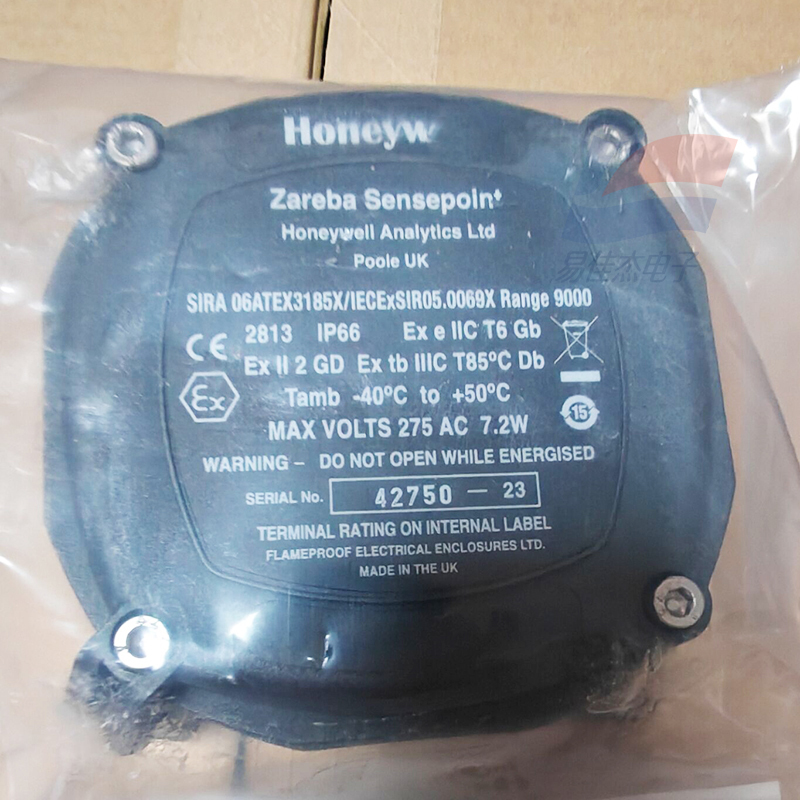

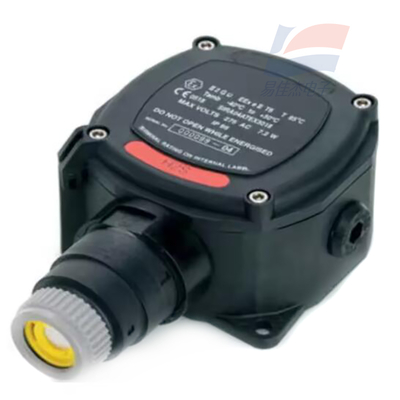

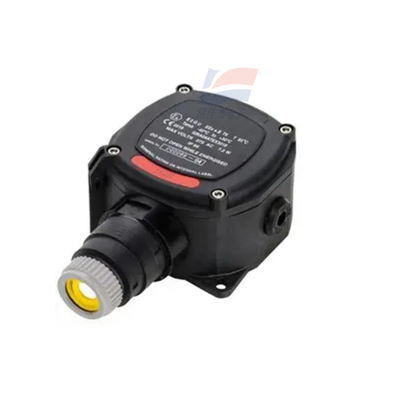

YJJ SPSTAXF1SS Flammable Gas Detector Gas Analyzer Made Of Stainless Steel

Product Description:

YJJ SPSTAXF1SS Flammable Gas Detector Gas Analyzer Made Of Stainless Steel

Features:

Fixed gas concentration alarm probe for xcd gas detector

The Sensepoint XCD gas detector is a fixed device installed in areas where there are flammable, explosive or toxic gases. It is used to measure the concentrations of combustible gases, toxic gases and oxygen in the air. It offers high cost-effectiveness and excellent long-term stability.

The XCD can be equipped with various sensors such as catalytic combustion, electrochemical and NDIR, making it capable of measuring a wide range of gases. Therefore, XCD is applicable to general industrial fields such as petroleum, chemical industry, metallurgy, and manufacturing, and it also performs well in some harsh environments.

The Sensepoint XCD features an automatic status indication function, which can clearly display its operating status from a distance:

• When there is no alarm and the device is functioning properly, the backlight is green.

• When a fault occurs, the backlight is yellow.

• When an alarm is triggered, the backlight is red.

General Detector Platform

Main features:

The measurement is accurate and reliable.

It has the characteristics of high precision, good stability and long service life.

The display is clear and intuitive.

It adopts a large LCD screen, simultaneously displaying the gas concentration in digital form and a bar chart, along with rich status icon displays and multi-color backlighting.

The operation is simple and fast.

Full-function on-site non-disassembly non-intrusive operation. Operated by magnetic rods, it is convenient for on-site calibration of the instrument.

The casing is sturdy and durable.

Aluminum alloy or stainless steel casing, with strong corrosion resistance.

Functionally rich and practical

The same external structure is applicable to multiple sensors. It has low purchase and operation costs, long sensor lifespan, three relay outputs and two inlet entrances that can be expanded for local alarm installation. It can be set up with maintenance plans and has a fault diagnosis function.

Multiple signal outputs

Three-wire 4-20mA industrial standard current signal connection method (Source or Sink option available), which can be connected to various gas alarm controllers, or PLC, DCS, SCADA and other systems.

2) When beyond the normal range, during inhibition (which can be set by the user), and when a fault occurs, different current signals are output at different levels, facilitating the system's data collection and processing.

3) Three programmable relays for output and Modbus RTU bus signal output are available as options, suitable for various application requirements.

Easy to install

The universal installation bracket is designed, and it can be installed remotely, making the on-site installation of the instrument convenient and fast.

Easy to maintain

The sensors and transmitters adopt a modular design internally. All the components within each module are connected by plug-and-connect methods, making it easy to replace the components on-site.

Specifications:
