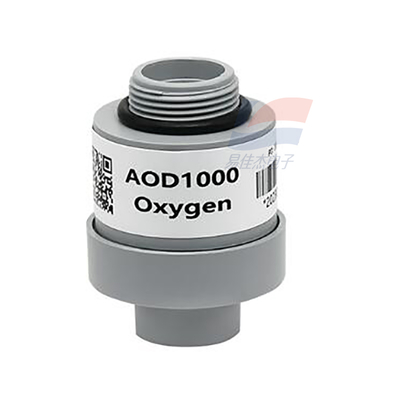

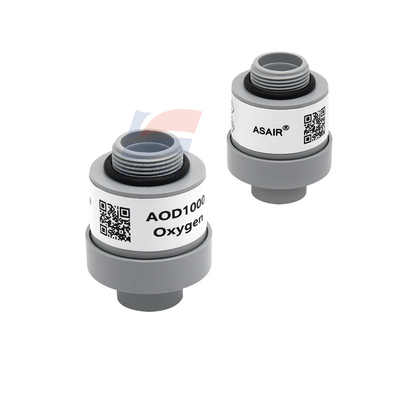

YJJ AOD1000 High-Pressure Diving Oxygen Sensor Oxygen Cell Is Used For Detecting Oxygen Concentration In High-Pressure Oxygen Chambers

Product Description:

YJJ AOD1000 High-Pressure Diving Oxygen Sensor Oxygen Cell Is Used For Detecting Oxygen Concentration In High-Pressure Oxygen Chambers

Features:

AOD1000 high-pressure oxygen sensor is a sensor interface model with a MOLEX 3-pin connector that can be used in high-pressure environments. Its structure and composition are different from those of oxygen sensors used under normal pressure, and it can withstand much higher air pressure than ordinary oxygen sensors.

The AOD1000 high-pressure oxygen sensor does not require an external power supply during operation. It has undergone professional and accurate product calibration and temperature compensation upon leaving the factory. It is widely used for oxygen monitoring in high-pressure equipment, such as high-pressure oxygen chambers, ship inspection systems, and oil tankers.

Model: AOD1000

Working principle: Voltage divider electrochemistry

Output voltage: 8.5 - 14 mV (in air)

Measurement range: 0 - 100%

Response time: < 10 seconds

Linearity: Full-scale linearity

Temperature compensation: < 2%0, at 0 - 50°C

Load resistance: > 10 kQ

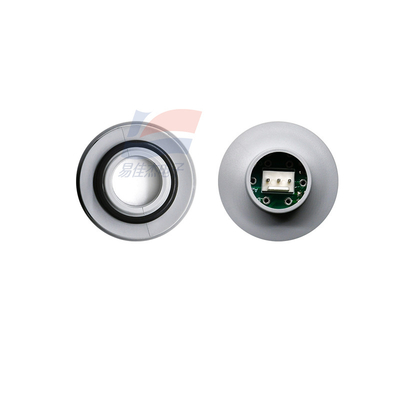

Interface: Molex 3-pin connector (2.54mm)

Shell material: Gray ABS

Weight: Approximately 25g

Operating temperature range: 0 - 45°C

Operating pressure range: 0.8 - 7.0 bar

Operating humidity range: 0 - 99%RH (no condensation)

Recommended storage temperature: 0 - 25°C

Expected lifespan: 42 months

Warranty period: 12 months
